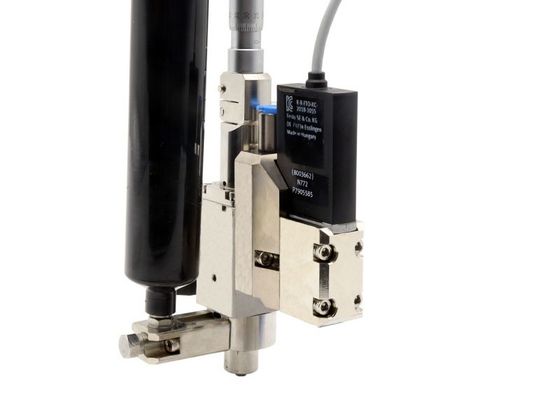

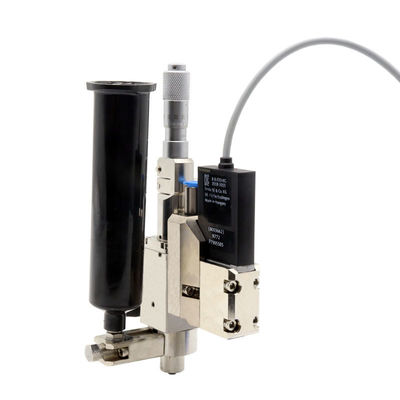

High Speed Aluminum Jetting Valve Controlled Volume Dispensing Valve HS PF 100 HS PF 200

High Speed Aluminum Non Contact Jetting Valve Precision Controlled Volume Dispensing Valve HS PF 100 HS PF 200 for SMT PCB Electronics Assembly

The HS PF Series Jetting Valve represents a new generation of high-performance non-contact dispensing solutions engineered for precision fluid application. Built with a robust aluminum body and advanced jetting technology, this controlled volume dispensing valve delivers consistent, high-speed deposition of adhesives, solder pastes, encapsulants, and other fluids with micron-level accuracy.

Available in two configurations — HS PF 100 and HS PF 200 — the series caters to a wide range of production demands, from fine-pitch micro-dot dispensing to high-volume continuous jetting operations. Whether you are assembling complex electronic components or managing high-throughput manufacturing lines, this jetting valve adapts seamlessly to your workflow, ensuring every deposit is exactly where it needs to be.

1. High-speed jet valve is a high speed non-contact jet valve driven by pneumatic pressure and controlled by solenoid valve, breaking through the traditional contact dispensing technology, no need to move the Z-axis when working, the spring pressure in the cavity is adjustable pneumatic pressure is used to drive, non-contact jet dispensing, high precision, fast speed solenoid valve control, fine scale micrometer to adjust the stroke, the spring pressure in the cavity is adjustable air-cooled way of physical cooling and cooling of the valve, which greatly improves the performance and life of the valve. Improve the performance and life of the valve.
2. Compact exterior design, flexible equipment installation, fast maintenance and servicing.

1. The touch screen controls the piezoelectric injection valve and dispensing system, supports 485 communication, powerful, safe and reliable.
2. The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.
3. Nozzle heating device:The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.
4. Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

SMT & PCB Assembly Ideal for solder paste jetting, adhesive deposition, and underfill applications on printed circuit boards. The high-speed capability ensures efficient handling of fine-pitch components and dense board layouts.

Semiconductor Packaging Delivers precise amounts of encapsulant, die attach adhesive, and protective coatings for chip-level packaging. Non-contact technology prevents damage to delicate die surfaces and wire bonds.

Electronics Manufacturing From consumer electronics to industrial devices, the valve handles conformal coating, EMI shielding material deposition, and structural bonding with consistent quality across production runs.

Medical Device Assembly Supports precision dispensing of medical-grade adhesives and sealants, where accuracy and repeatability are critical to product performance and regulatory compliance.

Automotive Electronics Built for reliability in high-volume production, the valve supports sensor assembly, control module packaging, and connector potting with dependable cycle-after-cycle consistency.

Proven Performance Across Industries Our HS PF Series Jetting Valves have been deployed in hundreds of production lines worldwide, earning a reputation for consistent performance and low maintenance requirements across diverse manufacturing sectors.

Tailored to Your Fluid Requirements We understand that every application is different. Our engineering team works closely with you to fine-tune valve parameters — from dot size to jetting profile — ensuring optimal results with your specific fluids and substrates.

Comprehensive Technical Support From initial installation to ongoing process optimization, our technical support team is available to help you maximize uptime and output. We provide training, troubleshooting, and process advice to keep your line running at peak efficiency.

Cost-Effective Precision By reducing material waste, minimizing rework, and lowering maintenance downtime, our jetting valve delivers a rapid return on investment. You get premium dispensing performance without the premium price tag.

Continuous Innovation We invest heavily in research and development to ensure our dispensing solutions stay ahead of industry demands. When you choose our products, you are partnering with a company committed to advancing dispensing technology.

Ready to upgrade your dispensing process? Contact our team today to discuss your specific application requirements and discover how the HS PF Series Jetting Valve can improve your production efficiency, reduce material waste, and elevate the quality of every product you manufacture. Our specialists are standing by to help you find the perfect dispensing solution for your line.
