PC‑Based Intelligent Grounding Automatic Screw Fastening Equipment Vision‑Guided Screw Locking Machine

Brand Name:	HSTECH
MOQ:	1 PC
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Screw Locking Machine

Driven Method:

Closed‑loop Servo / Stepper Motor

Positioning Accuracy:

±0.03 mm

Power Supply Voltage:

AC220V

Rated Power:

1200W

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

PC-based automatic screw fastening machine

vision-guided screw locking equipment

intelligent grounding screw fastening machine

Product Description

PC-Based Intelligent Grounding Automatic Screw Fastening Equipment

Vision-guided screw locking machine with 4-axis PC grounding intelligent screwing system for high-precision traceable screw tightening applications.

Product Overview

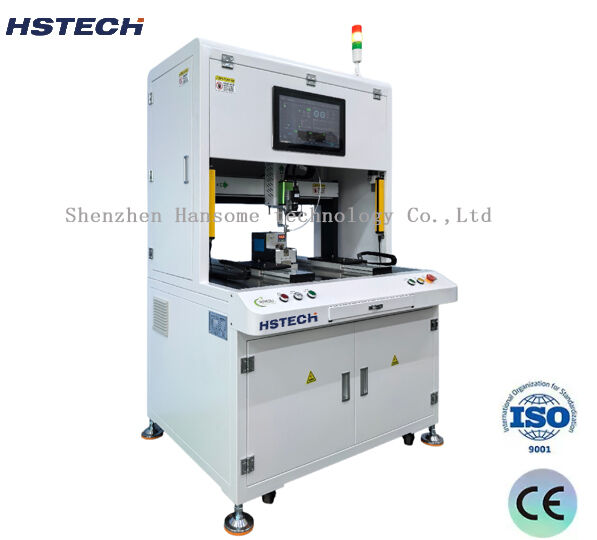

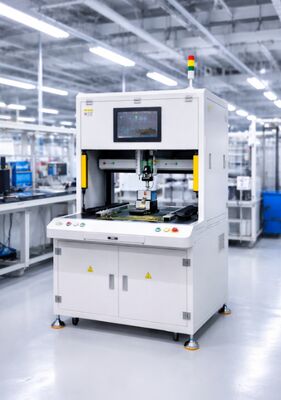

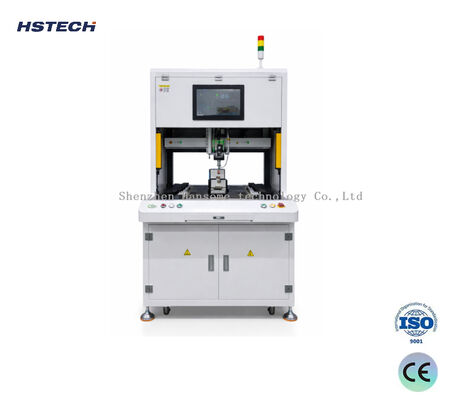

The PC Grounding Intelligent Screwing Machine 1.0 is a cabinet-type, high-precision automatic screw fastening solution built on a PC industrial platform. Combining Hikvision vision camera, smart electric screwdriver, closed-loop stepper motion system and safety light curtain protection, this equipment delivers stable, repeatable screw locking performance for modern smart manufacturing.

Built for robustness, durability and simple installation, the machine supports point-to-point teaching, CAD coordinate import, full-process fastening data recording, defect detection and optional MES system interconnection. It effectively solves common assembly issues including missing screws, floating screws and thread stripping, significantly reducing manual inspection workload and improving product assembly consistency.

Ideal for grounding screw assembly of PCBA, consumer electronics, control modules and electronic assemblies. Operators can debug programs, monitor real-time torque waveforms, and export production reports via user-friendly graphic interface without complex coding knowledge.

Core Advantages & Key Features

Powerful PC-based control system: Runs on industrial all-in-one PC under Windows 10 OS. Supports CAD coordinate import and manual point-to-point teaching for rapid program creation for new products.
Intelligent full-process fastening detection: Real-time waveform reading from smart electric screwdriver. Automatic detection for missing screws, floating height and stripped threads. Local CSV data storage and XLS data export for complete production traceability.
Multi-level operation management: Comprehensive user permission system for factory production safety and access control.
Optional expandable industrial functions: Barcode/QR-code scanning capability (requires external scanner hardware) and MES interconnection for uploading production records to remote servers via Ethernet.
High-precision servo-driven mechanical structure: Positioning accuracy of ±0.03 mm with dual-mode screw feeding (suction-type or blowing-type). Average locking cycle of 1.5-3 seconds per screw.
Robust construction: Heavy-duty cabinet frame ensures long-term stable continuous production in demanding environments.
Complete safety & human-centered design: Equipped with safety light curtain, physical emergency stop button, warning indicator light and keyboard-mouse drawer for operator convenience.
Premium branded components: Features smart electric screwdriver, AirTAC pneumatic parts, Hikvision industrial camera, Mean Well switching power supply, closed-loop stepper motors and self-developed tower-type screw feeder for reliable long-term operation.

Main Components

Smart electric screwdriver

Self-made tower-type screw feeder

PC All-in-One Industrial Computer (Windows 10)

Safety light curtain

Physical operation button panel & emergency stop

Hikvision visual camera

Keyboard and mouse pull-out drawer

Technical Specifications

Item	Parameter
Axis traveling distance	300 × 250 × 200 mm
Max locking product dimension	240 × 250 mm
Driven method	Closed-loop Servo / Stepper Motor
Positioning accuracy	±0.03 mm
Screw feeding method	Suction type / Air blowing type (selectable)
Single screw locked time	1.5-3 seconds
Power supply voltage	AC220V
Rated Power	1200W
Compressed Air Supply	0.4-0.6 MPA
Total machine weight	200 KG
Quantity of electric screwdriver	1 unit

Application Scenarios

This intelligent screw fastening machine fits mass-production assembly for:

PCBA & electronic control board grounding screw locking
3C consumer electronics assembly
Small household appliances and instrument modules
Automotive electronic component fastening
Any manufacturing scenario requiring screw-locking traceability and quality inspection

Ideal For Manufacturers Who Require

Traceable screw-locking records, real-time torque monitoring, defect auto-alarm, and equipment connectivity to factory MES management systems. This machine replaces repetitive manual screwing work, reduces human error, and lowers inspection costs while improving production quality and efficiency.
