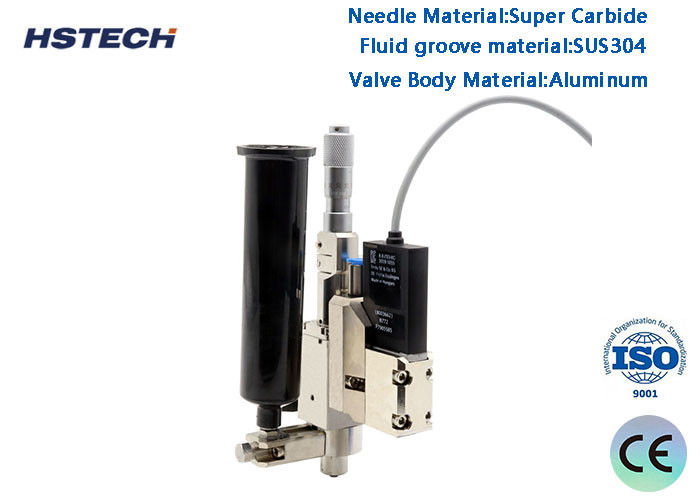

High Speed Aluminum Jetting Valve HS PF100 HS PF200 Controlled Volume Dispensing Valve

High Speed Aluminum Jetting Valve HS PF100 HS PF200 Controlled Volume Dispensing Valve SMT Automatic Glue Jet Dispensing Valve For PCB Electronic Component Assembly

Product Introduction

In the era of micro-manufacturing and smart automation, precision fluid dispensing is the cornerstone of product reliability. The HS-PF-100 and HS-PF-200 series Piezoelectric Jetting Valves are engineered to meet the rigorous demands of modern production lines. Utilizing advanced non-contact jetting technology, these valves deliver high-frequency, high-precision dispensing for low-to-medium viscosity fluids. Whether you require the compact footprint of the HS-PF-100 or the high-volume throughput of the HS-PF-200, our jetting valves ensure clean breaks, consistent droplet formation, and superior process stability without the risk of nozzle smearing.

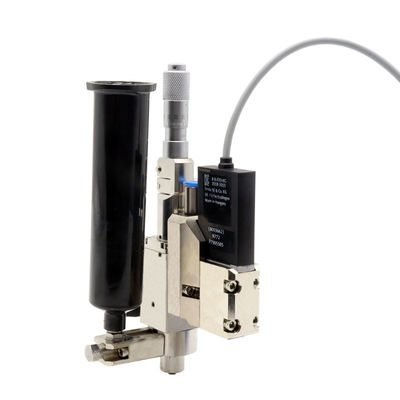

Contactless Pneumatic Jet Valves

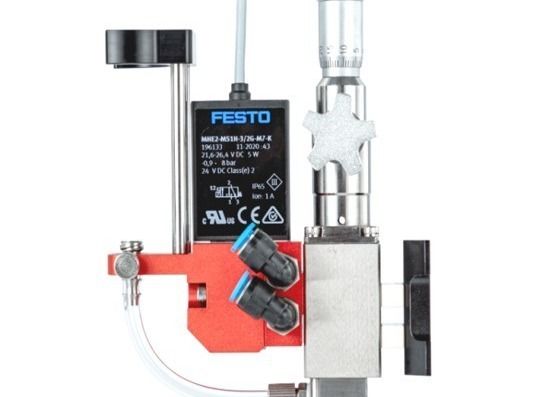

1. High-speed jet valve is a high speed non-contact jet valve driven by pneumatic pressure and controlled by solenoid valve, breaking through the traditional contact dispensing technology, no need to move the Z-axis when working, the spring pressure in the cavity is adjustable pneumatic pressure is used to drive, non-contact jet dispensing, high precision, fast speed solenoid valve control, fine scale micrometer to adjust the stroke, the spring pressure in the cavity is adjustable air-cooled way of physical cooling and cooling of the valve, which greatly improves the performance and life of the valve. Improve the performance and life of the valve.
2. Compact exterior design, flexible equipment installation, fast maintenance and servicing.

Jet Valve Controller

1. The touch screen controls the piezoelectric injection valve and dispensing system, supports 485 communication, powerful, safe and reliable.
2. The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.
3. Nozzle heating device:The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.
4. Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

Specification

Versatile Application Scenarios

We understand that in high-speed micro-dispensing, consistency is everything. The HS-PF series is built with aerospace-grade materials and precision-machined components to guarantee long-term durability and repeatability. By offering two distinct models (HS-PF-100 and HS-PF-200), we provide tailored solutions whether your priority is extreme speed in tight spaces or high-volume output on heavy-duty lines. Backed by rigorous quality testing and dedicated technical support, our valves are designed to maximize your yield, reduce material waste, and elevate your overall equipment effectiveness (OEE).

• Consumer Electronics Assembly: Precision application of primers, UV adhesives, and conformal coatings on PCBs, smartphone components, and wearable devices.
• Optical & Display Manufacturing: Accurate dispensing of optical adhesives, lens bonding, and edge sealing for LCD, OLED, and MiniLED panels.
• Automotive Electronics: Reliable application of protective coatings, potting compounds, and bonding agents for sensors, ECUs, and lighting modules.
• Medical Device Production: Clean, precise, and traceable fluid dispensing for microfluidic devices, diagnostic kits, and disposable medical assemblies.

Why Choose Our Jetting Valves?

We understand that in high-speed micro-dispensing, consistency is everything. The HS-PF series is built with aerospace-grade materials and precision-machined components to guarantee long-term durability and repeatability. By offering two distinct models (HS-PF-100 and HS-PF-200), we provide tailored solutions whether your priority is extreme speed in tight spaces or high-volume output on heavy-duty lines. Backed by rigorous quality testing and dedicated technical support, our valves are designed to maximize your yield, reduce material waste, and elevate your overall equipment effectiveness (OEE).

Ready to Upgrade Your Dispensing Process?

Don't let inconsistent fluid application compromise your product quality or slow down your production cycle. Experience the speed and precision of the HS-PF-100 and HS-PF-200 Jetting Valves. Contact us today for a customized quotation, technical datasheets, or to schedule a product demonstration. Let our engineering team help you achieve flawless dispensing for your next manufacturing project.
