Solder Paste Screw Valve HS 2000S HS 2000R Disposable Fluid Path No Motor Reversal For SMT Dispensing

No Motor Reversal Function Solder Paste Screw Valve HS-2000S HS-2000R With Disposable Fluid Path For High Precision SMT Solder Paste Dispensing

The HS-2000S / HS-2000R Solder Paste Screw Valve is a precision volumetric dispensing valve designed for accurate, repeatable solder paste deposition in SMT, PCB assembly, and selective soldering applications. Driven by a servo motor and high-precision screw mechanism, it delivers consistent paste volume regardless of viscosity changes, cartridge fill level, or ambient pressure fluctuations.

Unlike time-pressure pneumatic valves, the screw valve moves solder paste through a rotating screw channel in a controlled volumetric manner. This ensures stable dot weight, uniform paste shape, and excellent repeatability, making it ideal for fine-pitch pads, BGA rework, pin-in-paste, shielding frames, connectors, and small-component soldering.

(Solder Paste) Screw Valve is our self-developed, patented Disposable Material Path (DMP) dispensing valve.

1.Includes disposable feed screws for easy maintenance, and the disposable feed channel allows the valve to maintain its dispensing accuracy for a longer period of time.

2. The DMP valve's more chain door can be opened easily, easy to remove the disposable feed channel, even in the production line, can be replaced in a very difficult time, do not need to clean or refurbish the valve, does not affect normal operation.

3. There is a heating function, in the use of higher viscosity glue, heating will make the glue flow better, more stable out of the glue.

4. Use Dclrin country made feed screw, strict quality suppliers to ensure product quality.

5. Relative to ordinary valves, reducing the accumulation of liquid in the valve body to reduce the wear and tear of the motor, so that the service life of the valve is greatly increased.

6. HS-2000S series valves are available in three pitch sizes: 6, 8 and 16 pitch. For details, please refer to the example table on the right.

7. Equipped with a special controller, you can freely adjust the cycle of punching or line drawing mode, as well as the suction time.

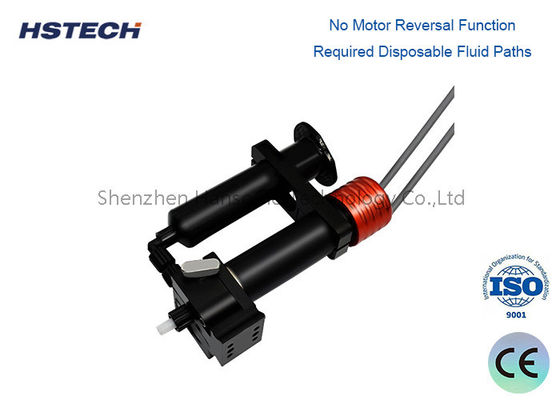

1. No Motor Reversal Function Required Disposable Fluid Paths.

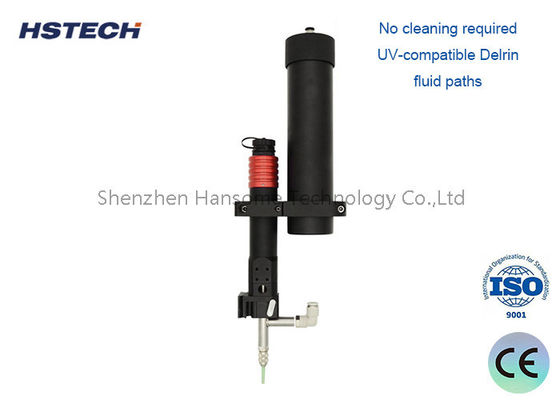

2. No cleaning required UV-compatible Delrin fluid paths.

3. Rotating tip collar option for curved/oval tips.

• SMT assembly line PCB solder paste dotting and bead dispensing
• PCBA solder paste coating for electronic circuit boards
• BGA reballing, chip packaging and micro solder paste deposition
• FPC flexible circuit board paste dispensing
• Solar cell lug solder paste application
• Precision dispensing of thermal paste, conductive paste and other high viscosity particle pastes

1. Optimized disposable fluid path design. No motor reversal needed, saving your programming work and reducing controller compatibility issues.
2. Two model options HS-2000S and HS-2000R to match different solder paste viscosity, cover most SMT dispensing requirements.
3. Quick-change disposable fluid path cartridges. When switching paste types or batch change, just replace the fluid path instead of cleaning the whole valve, greatly boost production efficiency.
4. Stable positive displacement auger mechanism. Consistent dispensing volume, reduce defective rate caused by uneven solder paste dots.
5. Easy integration. This SMT screw dispensing valve can be fitted on most mainstream automatic dispensing machines and inline production systems.
6. Complete after-sales support: installation guidance, operation manual, remote technical support and spare parts supply for disposable fluid path consumables.

If you are searching for reliable Solder Paste Screw Valve for your PCB and SMT solder paste dispensing process, please share your solder paste viscosity, dispensing dot/bead size and machine mounting requirement. We will provide technical datasheet, working video and competitive quotation for your evaluation.
