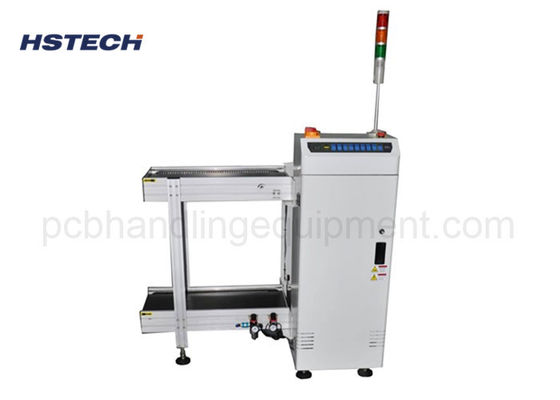

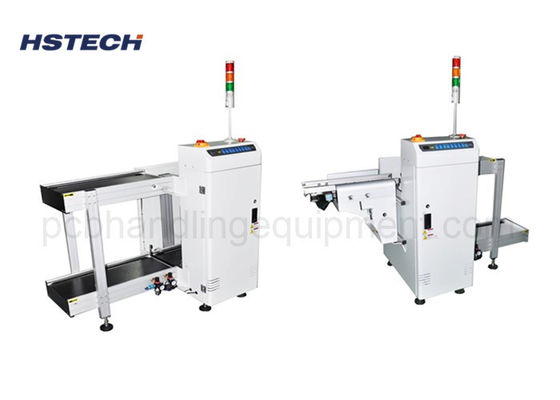

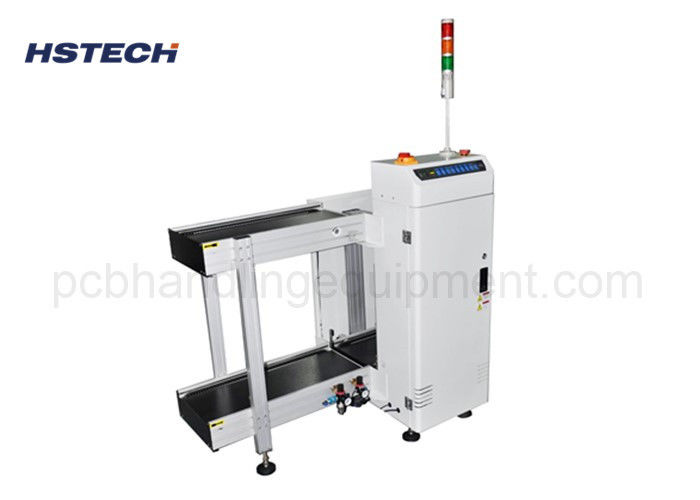

Product Name: Multiple Magazine PCB Loader Other Name: SMT Board Loading Machine
Power Supply: AC110V/220V,50/60Hz Air Pressure: 4-6 Bar
PCB Thickness: Min 0.4mm Pitch Selection: 10-40mm
Conveyor Speed: 0.5-20M/min Or Customized Communication: SMEMA
Highlight:

0.4mm PCB Loader Hanling Machine

,

6 Seconds PCB Loader Hanling Machine

Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine



Application



This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.



Features



1, Module design.

2, Stability enhanced by robust design.

3, Economic design arm test.

4, Smooth and parallel width adjustment.

5, Three magazine racks application.

6, Top and bottom pneumatic clamps to secure magazine rack.

7, No PCB breakage guaranty during loading &unloading.

8,SMEMA compatible.



Specification



Product name PCB Loader Machine
Transport height 910±30mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model selection



Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg



Control Bottun and electric box
