1.5M LED Board Vacuum Loader With 10 Seconds Loading Time Vacuum Suction Nozzles

1.5M LED Board Vacuum Loader With 10 Seconds Loading Time Vacuum Suction Nozzles Automatic SMT LED Panel Substrate Vacuum Loading Handling Machine

Product Introduction

Key Features

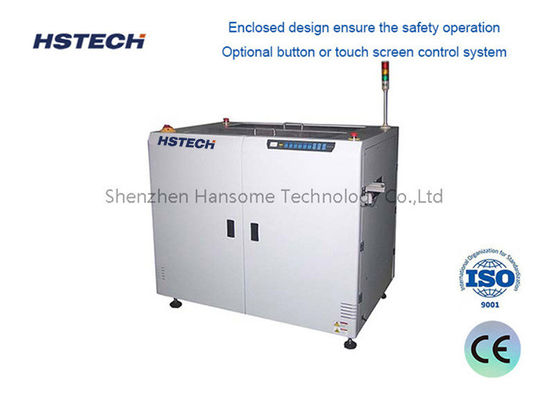

• Enclosed safety design for secure operation
• Top-side machine cover for easy maintenance access
• Optional button or touch screen control system
• Panasonic PLC for reliable automation control
• Flexible suction nozzles positioning
• Manual width adjustment capability
• Self-programmed error display with maintenance instructions
• By-pass mode selection without PCB stack removal
• SMEMA communication integration

Technical Specifications

Application Scenarios

• LED Lighting PCB Production
  Suitable for loading long LED aluminum substrates used in LED strips, LED modules, and lighting fixtures.

• SMT Line Front-End Loading
  Works as an automatic loader at the beginning of the SMT line, feeding boards into printing, mounting, or inspection processes.

• Long-Board PCB Handling
  Ideal for applications where manual feeding is inefficient or where board length makes manual handling difficult.

• High-Volume Electronics Manufacturing
  Helps maintain stable feeding during mass production, reducing operator dependency and improving line consistency.

• Aluminum Substrate Processing Lines
  Supports gentle transfer of aluminum-based boards that require careful handling to avoid surface damage.

• Automated PCB Transfer Systems
  Can be integrated into semi-automatic or automatic PCB handling lines to improve overall workflow efficiency.

Why Choose Our 1.5M LED Board Vacuum Loader

• Focused on LED and SMT Production Needs
  The equipment is designed to handle long LED boards and aluminum substrates, which are common challenges in lighting PCB manufacturing.

• Gentle Vacuum Transfer
  Vacuum-assisted loading helps protect board surfaces and reduces the risk of scratches, deformation, and handling errors.

• Stable and Reliable Performance
  Built for continuous factory use, supporting stable operation in demanding production environments.

• Easy to Operate and Maintain
  Simple control logic and accessible structure help reduce training time, daily operation difficulty, and maintenance workload.

• Flexible Integration
  Compatible with standard SMT conveyor widths and inline layouts, making it easier to connect with existing production lines.

• Customization Support
  We can provide configuration options based on your PCB size, thickness, line speed, conveyor height, and factory layout.

• Professional Technical Service
  Our team supports equipment selection, installation guidance, and after-sales service to help ensure smooth commissioning and long-term operation.

Contact Us for a Quote

If you are looking for a reliable vacuum loader for long LED boards and SMT PCBs, the 1.5M LED Board Vacuum Loader can be a practical addition to your production line.

Please share your PCB length, width, thickness, material type, conveyor height, and line requirements. We will help recommend a suitable configuration and provide a quotation accordingly.
