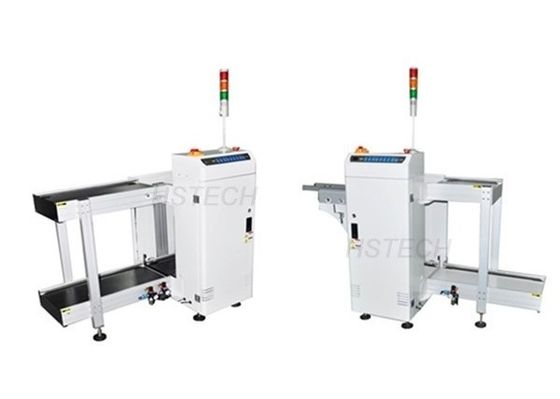

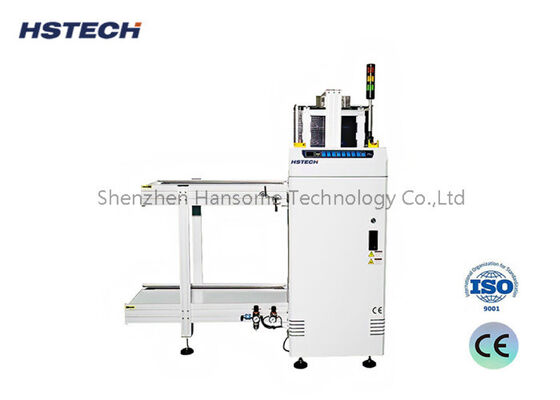

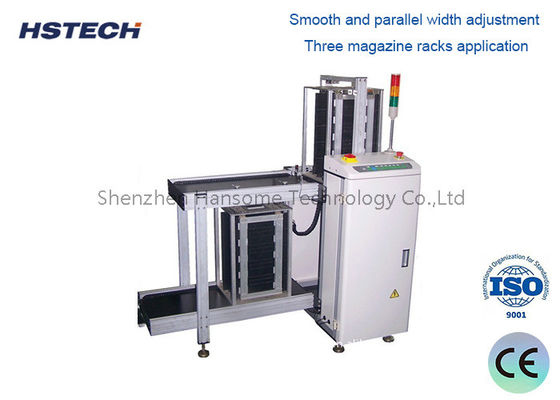

CE Listed PCB Magazine Loader No PCB Breakage Guarantee for 330mm Width

CE Listed Automatic PCB Magazine Loader No PCB Breakage Guarantee For 330mm Width PCB Boards Industrial PCB Loading Handling Equipment

In high-volume Surface Mount Technology (SMT) manufacturing, seamless and reliable board feeding is critical to maintaining line efficiency. Our Automatic PCB Magazine Loader is specifically engineered to automate the loading process, transferring bare PCBs from standard magazines directly onto the production line. By replacing manual handling, this equipment not only eliminates the risk of pad oxidation and physical damage but also drastically reduces labor costs. Designed with a premium aluminum alloy frame and high-precision components, this PCB loader guarantees stable, accurate, and continuous material flow for modern smart factories.

• Easy operation with light-contact LED keys or touch screen control panels
• Stable and reliable integrated control system for consistent performance
• Effective thrust design ensures PCB protection with zero breakage guarantee
• Flexible suction cup design with easy adjustment of suction plate position

Our PCB Magazine Loader is a versatile workhorse tailored for a wide range of automated manufacturing environments:

• SMT Assembly Lines: Serving as the primary starting point for automated assembly, feeding bare boards into solder paste printers and placement machines.
• LED & Display Manufacturing: Capable of handling specialized PCB dimensions required for high-volume LED strip and display panel production.
• Automated Buffer Stations: Acting as a reliable feeding station in complex conveyor systems, ensuring downstream machines never run out of material.
• Smart Factory Upgrades: Integrating seamlessly with PCB unloaders, stackers, and conveyors to create a fully automated, lights-out production environment.

We understand that in industrial manufacturing, reliability and precision are non-negotiable. Our PCB Magazine Loader is built with a superior aluminum material frame that is strong, durable, and resistant to wear. By utilizing imported electric-brake motors, precision screw rods for lifting, and high-quality pneumatic components, we deliver a machine that operates smoothly and requires minimal maintenance. Backed by comprehensive technical support and a commitment to quality, our equipment is designed to reduce your operational costs, protect your products, and boost your overall equipment effectiveness (OEE).

Don't let manual board handling bottleneck your production or compromise product quality. Upgrade to automated efficiency today. Contact us now for a customized quotation, detailed CAD drawings, or to discuss your specific SMT manufacturing needs. Let our engineering team design the perfect material handling solution to keep your assembly line running at peak performance.
