1.5M LED Board Vacuum Loader Machine Fast 10 Seconds Loading Time With Vacuum Suction Nozzles For SMT PCB Assembly Production Line

Product Introduction

In the high-volume LED lighting and display manufacturing sectors, efficient and gentle board handling is the foundation of a flawless SMT production line. Our Automatic LED Board Loader is specifically engineered to seamlessly feed bare PCBs from magazines directly into the assembly process. Designed to accommodate the unique dimensions of LED boards, this equipment automates the loading process to eliminate manual handling, prevent pad oxidation, and ensure a continuous, uninterrupted material flow. Built with a robust aluminum alloy structure and intelligent control systems, this LED loader is the ultimate starting point for modern, high-yield smart factories.

Key Features

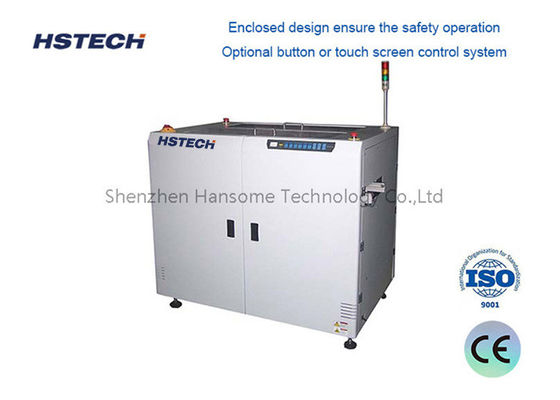

• Enclosed safety design for secure operation
• Top-side machine cover for easy maintenance access
• Optional button or touch screen control system
• Panasonic PLC for reliable automation control
• Flexible suction nozzles positioning
• Manual width adjustment capability
• Self-programmed error display with maintenance instructions
• By-pass mode selection without PCB stack removal
• SMEMA communication integration

Technical Specifications

Versatile Application Scenarios

Our LED Board Loader is a versatile workhorse tailored for a wide range of automated manufacturing environments:

• LED Assembly Lines: Serving as the primary feeding station for bare boards in the production of LED tubes, bulbs, strips, panels, and downlights.
• SMT Production Lines: Integrating seamlessly at the beginning or middle of an SMT line to automatically load unpopulated boards into downstream machines.
• Automated Buffer Stations: Acting as a reliable feeding station in complex conveyor systems, ensuring high-speed placement machines never run out of material.
• Smart Factory Upgrades: Combining with LED unloaders, stackers, and conveyors to create a fully automated, lights-out production environment that maximizes OEE.

Why Choose Our LED Board Loader

Professional Manufacturing Strength: We focus on the R&D and production of SMT and PCB automated loading equipment. Our vacuum suction loader series products have mature technology and stable performance, fully complying with international industrial production standards, and meet the high-precision and high-efficiency production requirements of electronic manufacturers.

Strict Quality Control: Every LED panel vacuum loader undergoes strict factory testing on operating stability, loading accuracy and equipment durability. We eliminate unqualified products from the source to ensure long-term stable operation of customer production lines.

Cost-effective Optimization: Compared with traditional loading equipment, our SMT board loader greatly saves labor costs and improves production efficiency. With low later maintenance cost and high equipment compatibility, it creates higher economic benefits for customers' automated production.

Customized and Intimate Service: While providing standard LED production line loader equipment, we can also adjust equipment parameters and supporting schemes according to customers' production line layout and product specifications to meet personalized production demands.

Perfect After-sales Support: We provide professional equipment installation, debugging and technical guidance services. With long-term after-sales guarantee and quick response technical support, we ensure customers have no worries about equipment use.
