PCB Pusher 3 Color Display SMT Magazine Loader Front Operation

PCB Pusher 3 Color Display SMT Magazine Loader Front Operation
PCB Pusher 3 Color Display SMT Magazine Loader Front Operation PCB Pusher 3 Color Display SMT Magazine Loader Front Operation

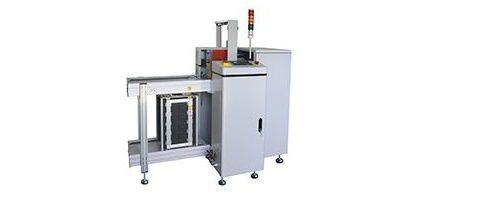

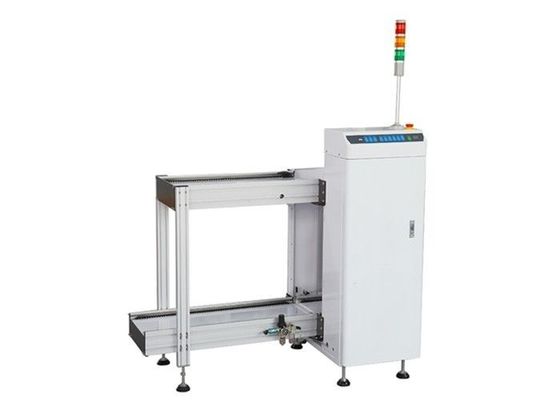

Large Image :  PCB Pusher 3 Color Display SMT Magazine Loader Front Operation

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: 250mm / 330mm PCB Loader Equipment Other Name: Magazine Loader
Transport Height: 920±20mm PCB Loading Time: Approx 6 Seconds
Magazine Replace Time: Approx 30 Seconds Transportation Direction: L~R, Or R~L
Operation: Front Operation PCB Thickness: Min 0.4mm
High Light:

PCB Pusher SMT Magazine Loader

,

3 Color Display SMT Magazine Loader

,

Magazine Loader Precision PCB Pusher



Belt Transporting PCB Width Adjustment 3 Color Display SMT Magazine Loader







Features



  1. 4 PCB width selectable, 250mm/330mm/390mm/460mm.
  2. Precision PCB pusher.
  3. 3 color light for machine statu display.
  4. Standard work with 3 magaiznes, top side 1 magazine, buttom 2 magazines.
  5. Standard LED button control, optional touch screen control.
  6. Stability stainless steel structure.
  7. Smooth and parallel width adjustment.
  8. No PCB breakage guaranty during loading.
  9. CE listed, suitable for Europe market.





Specification



Model HS-LD330
Product name PCB Magazine Loader
Transport height 920±20mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model selection



Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg





Application



This machine is a PCB loading machine, it used in the start of SMT production line, the machine push the PCB from magazine racks and transporting to the downstream machine of the production line.
