| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-DS400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Destacker | Other Name: | Bare Board Loader |
|---|---|---|---|
| Power Supply: | AC110V/220V,single Phase | Program: | PLC |
| PLC Brand: | Mitsubishi | Air Pressure: | 0.6Mpa |
| PCB Thickness: | 0.6~4.0mm | Warranty: | 1 Year |
| Highlight: | SMT Production Line PCB Destacker,Omron Relay PCB Destacker,Panasonic PLC Bare Board Loader |
||

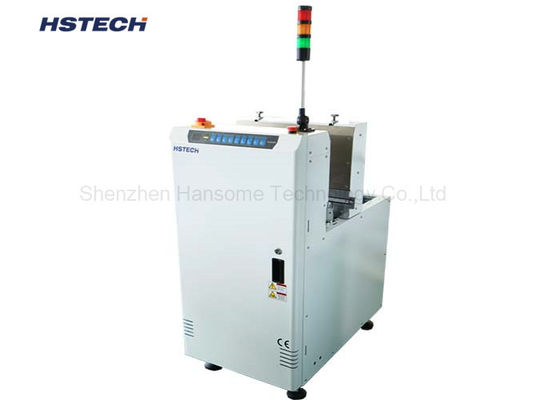

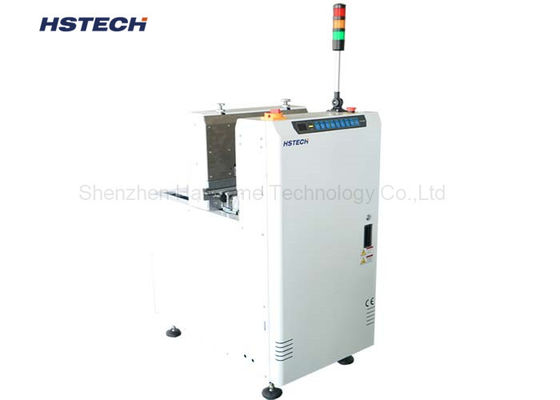

Omron Relay SMT Production Line PCB Destacker Panasonic PLC Bare board Loader
Features
1. Panasonic PLC program control.
2. Traditional and simple LED button Control.
3, Smema signal connection.
4, Manual PCB thickness adjustment.
5, Hand crank PCB width adjustment.
6, LED display light status.
7, Aluminium structure, heavy bottom design to prevent shift.
8, Pass-through mode provided.
9, Only taken 10 seconds to change product line.
10, Uninterrupted Loading.
11, ESD transporting belt.
12, Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door
Application
This machine used for loading bare PCBs to smt line, stack load the circuit boards.
Specification
| Function |
Used for loading bare PCB to smt line after received down-stream machine signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-DS400 | HS-DS530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 503*770*1200mm | 600*920*1200mm |
| Weight | 110kg | 130kg |
