PCB Loader
Created with Pixso.

High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed

Name

High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed

Brand Name: HSTECH
Model Number: HS-LD250
MOQ: 1set
Price: Negotiable
Payment Terms: D/P,T/T,Western Union
Supply Ability: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Magazine Loader
Program:
PLC
Material:
Aluminum
Pcb Direction:
L To R
Interface:
SMEMA
Application:
PCB Assembly
Packaging Details:
Wooden package
Supply Ability:
200 sets per month
Highlight:

6bar Magazine Loader

,

20M/min PCB Loader

,

Aluminum Profile SMT Magazine Loader

Product Description
High Speed Magazine Loader Aluminum Profile 6bar 20M/min With SMEMA for SMT Line
Copy Nutek LED Button Control SMT Line Magazine Loader PCB Handling Machine
Application
A Magazine Loader is an industrial automation tool designed for efficient loading of printed circuit boards into magazines for SMT (Surface Mount Technology) production lines. It is commonly used in electronics manufacturing facilities to improve production efficiency and reduce manual handling time.
Key Features
  • Traditional LED button control system
  • Compatible with 3 magazine racks
  • Stability stainless steel structure
  • Smooth and parallel width adjustment
  • 3 color LED light display
  • Top and bottom pneumatic clamps to secure magazine rack
  • No PCB breakage guarantee during loading & unloading
  • SMEMA compatible
  • CE listed, suitable for European market
Technical Specifications
Model HS-LD250
Product name PCB Loader
Transport height 920±20mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side (or specify)
Power supply 220V, 50/60Hz, ±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side: 1 pc, bottom side: 2 pc
Pitch selection 1-4 (10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA
Model Selection Guide
Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg
Product Images

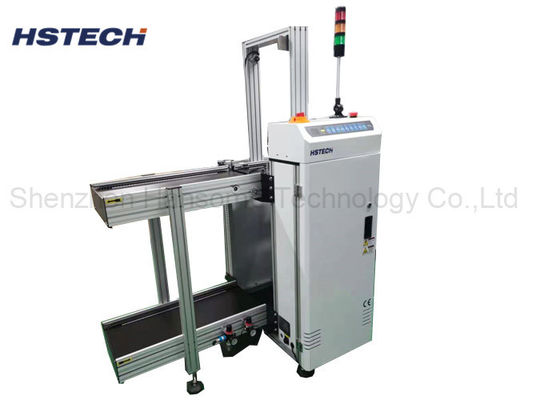

High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed 0

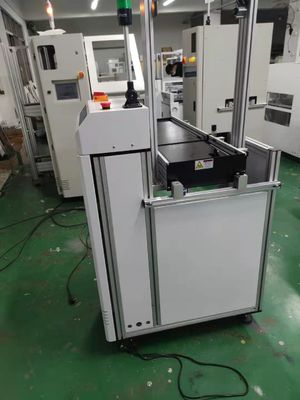

High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed 1

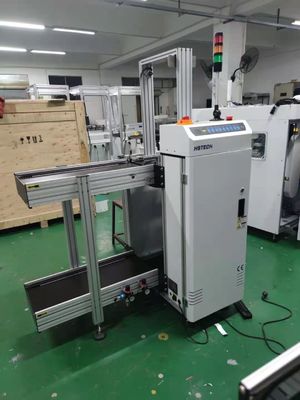

High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed 2
High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed 3
High Speed Aluminum Profile Magazine Loader for SMT Line with 6bar Air Pressure and 20M/min Conveyor Speed 4
Tags:

SMT Loader

SMT Board Loader

SMT Production Loader
