Flexible Magazine Quantity and Pitch Selection 10-40mm PCB Loader with SMEMA Communication

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Multiple Magazine PCB Loader

Other Name:

SMT Board Loading Machine

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Thickness:

Min 0.4mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Communication:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Highlight:

Flexible Magazine Quantity PCB Loader

Pitch Selection 10-40mm SMT Board Loading Machine

SMEMA Communication Multiple Magazine PCB Loader

Product Description

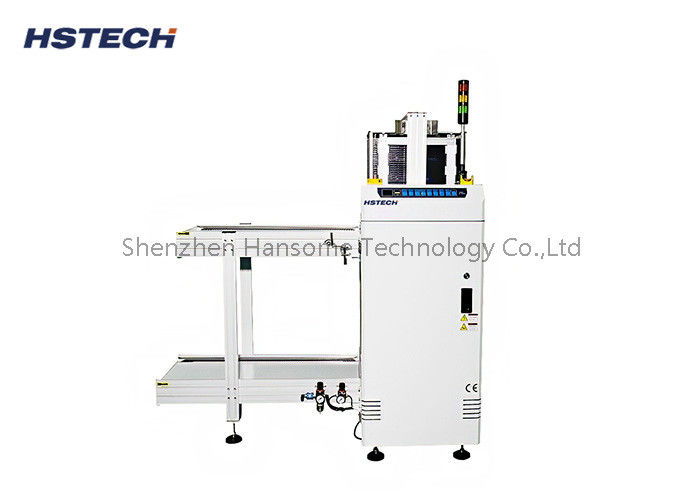

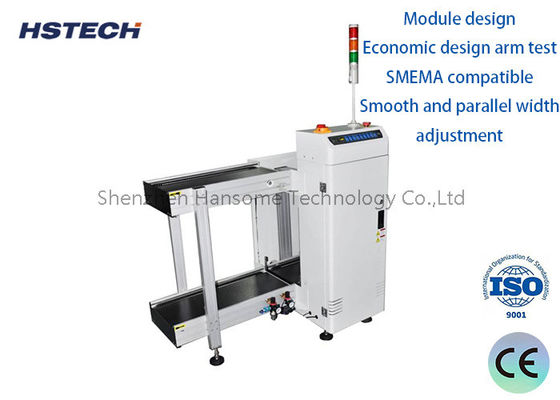

Flexible Magazine Quantity and Pitch Selection for HS-LD Series PCB Loader

High Efficiency SMEMA Signal PCB Loader Handling Machine

Application

This unit is designed for loading PCBs and transporting them on SMT production lines.

Key Features

Suitable for handling single-sided and double-sided boards
Dedicated aluminum machine frame with specialized plastic rail chain
Pneumatic board clipping structure
Programmable Mitsubishi PLC control system
Ballscrew adjustment for board pushing pneumatic cylinder location
Real color touch screen controls
SMEMA interface compatibility
Individual electric console
Multiple board size model options available

Technical Specifications

Product Name	PCB Loader Machine
Transport Height	910±30mm
PCB Loading Time	Approximately 6 seconds
Magazine Replace Time	Approximately 30 seconds
Transportation Direction	Left to Right or Right to Left
Operation	Front operation
Track Fixed Side	Front side (or as specified)
Power Supply	220V, 50/60Hz, ±10%
Air Pressure	4-6 bar
PCB Thickness	Minimum 0.4mm
Magazine Quantity	Upper side: 1 pc, Bottom side: 2 pcs
Pitch Selection	1-4 (10mm pitch)
Conveyor Speed	0.5-20 M/min or customized
Signal Interface	SMEMA

Model Selection Guide

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB Length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine Size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg
