| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-LD330 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | 250mm / 330mm PCB Loader Equipment | Other Name: | Magazine Loader |
|---|---|---|---|
| Transport Height: | 920±20mm | PCB Loading Time: | Approx 6 Seconds |
| Magazine Replace Time: | Approx 30 Seconds | Transportation Direction: | L~R, Or R~L |
| Operation: | Front Operation | PCB Thickness: | Min 0.4mm |

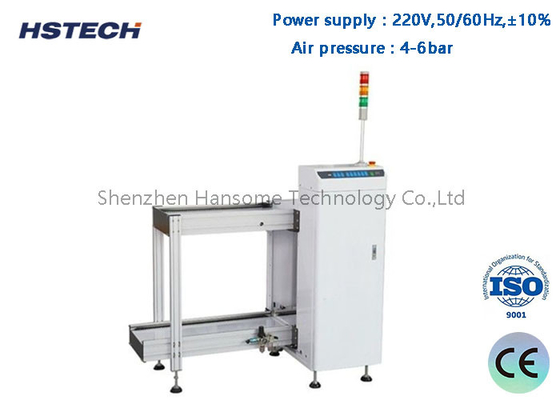

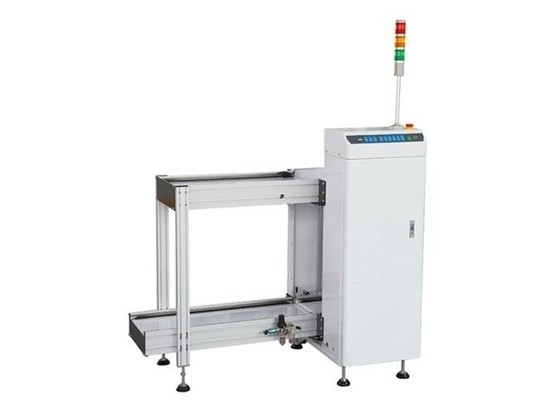

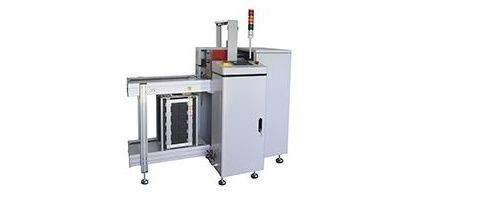

Belt Transporting PCB Width Adjustment 3 Color Display SMT Magazine Loader
Features
Specification
| Model | HS-LD330 |
| Product name | PCB Magazine Loader |
| Transport height | 920±20mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Application
This machine is a PCB loading machine, it used in the start of SMT production line, the machine push the PCB from magazine racks and transporting to the downstream machine of the production line.
