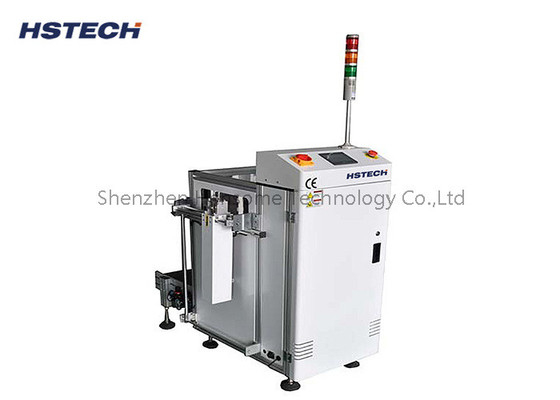

Compact 90 degree PCB Loader Machine with Touch Screen Control for SMT Production Line

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Multiple Magazine PCB Loader

Other Name:

SMT Board Loading Machine

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Thickness:

Min 0.4mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Communication:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Short Length Touch Screen Control 90 degree Type PCB Linking Loader Machine

Application

This unit is used in the beginning of SMT production line for tranporting PCBs from magazines to the line, it's a 90 degree type PCB loader,

its special for saving the space of factory.

Features

1, Module right angle (90 degree) design.

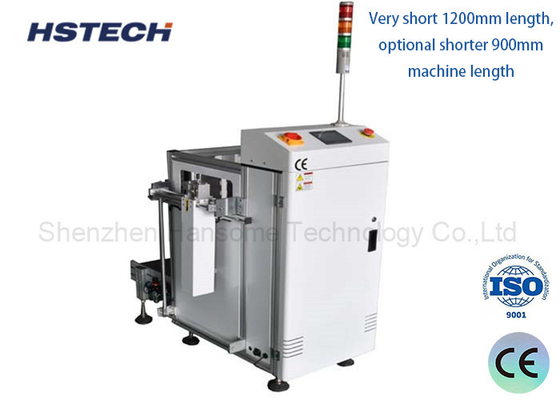

2, Very short 1200mm length, optional shorter 900mm machine length.

3, Flexible Collapsible PCB pusher.

4, 3 magazines available.

5, Smooth and parallel width adjustment.

6,SMEMA compatible.

Specification

Product name	90 degree PCB Loader Machine
Machine length	1200mm or 900mm
Transport height	910±30mm
PCB loading time	Approx 6 seconds
Magazine replace time	Approx 30 seconds
Magazine qty	3 pcs
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side(or specify)
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 2 pc
Pitch selection	1-4(10mm pitch)
Conveyor speed	0.5-20M/min or customized
Light status	3 color display
Signal	SMEMA

Compact 90 degree PCB Loader Machine with Touch Screen Control for SMT Production Line 0

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
