SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader

Brand Name:	HSTECH
Model Number:	HS-NK250
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

NG OK Unloader

PCB Transporting Height:

910±30mm

PCB Dimension:

50*50~330*250mm

Power Supply:

AC220V, 50/60Hz

Magazine Qty:

Each Rail 2 Magazines

Warranty:

1 Year

Usage:

SMT Production Line,SMT Assembly Line

Condition:

New

Packaging Details:

Wooden package, with foam

Supply Ability:

100 sets per month

Product Description

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader

Intorduction

This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.

Technical details

Function	Collect the NG/OK boards separately by receiving the signal.
Transport height	910±30mm
Transportation direction	L~R, or R~L
Board collect time	Each approx 6 seconds
Magazine change over time	Approx 30seconds
Track fixed side	Front side
Operation side	Front side
Conveyor belt	ESD
PCB thickness	Min 0.6mm
Pitch selection	1-4(10mm pitch)
Power supply	220V,50/60Hz,±10%
Power	0.05kW
Air pressure	4-6Bar
Air consumption	Max 15L/min
Number of magazines	Upper:1 magazine, Bottom side:2 magazines
Signal	SMEMA
Options	1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.

Features

1, PLC programing control.

2, Using friendly ‘soft touch’ LED membrane control panel

3, Selectable pitch setting.

4, Toggle level clamps provided for magazine alignment.

5, Pneumatic pusher’s pressure regulated.

6, High throughput with short magazine change-over time.

7, Collect NG/OK board from AOI, automatic store the NG/OK boards.

8, Standard SMEMA communication interface.

Model

Model	HS-NK250	HS-NK330	HS-NK390	HS-NK460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
PCB thickness	Min 0.6mm	Min 0.6mm	Min 0.6mm	Min 0.6mm
Magazine size	355320563mm	460400563	535460570mm	535530570mm
Machine dimension	195016001200mm	230017601200mm	250018801200mm	250021601200mm
Weight	220kg	280kg	340kg	380kg

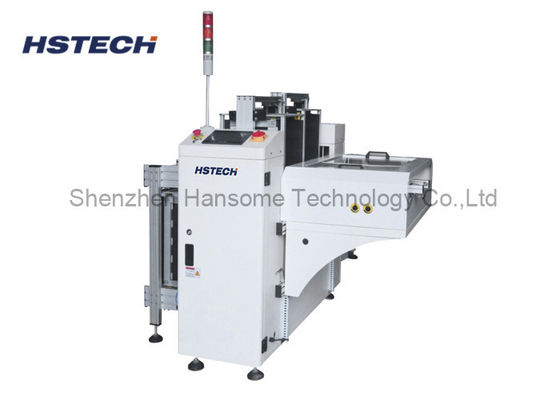

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader 0

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
