True Color Touch Screen Control PCB Loader with SMEMA Signal and 6 Seconds Loading Time for SMT Production

True Color Touch Screen Control PCB Loader with SMEMA Signal and 6 Seconds Loading Time for SMT Production

Brand Name:	HSTECH
Model Number:	HS-250LD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Loader

Color:

White

Power Supply:

AC110V/220V,50/60Hz

PLC:

Panasonic

Relay:

Schneider

Optoelectric Switch:

Omron

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

True Color Touch Screen Control PCB Loader

SMEMA Signal PCB Loader

6 Seconds Loading Time SMT Magazine Loader

Product Description

High Quality True Color Touch Screen Control PCB Loader With SMEMA Signal

True Color Touch Screen Control PCB Loader with MITSUBISHI PLC for automated SMT production line operations.

Application

This machine is designed for the start of SMT production lines, automatically pushing PCBs out of the magazine to the conveyor of downstream equipment.

Specifications

Model	HS-250LD	HS-330LD	HS-390LD	HS-460LD
Voltage	AC110V/220V, 50/60Hz, single phase, max 300A
PCB Dimension	(50×50)~(350×250)	(50×50)~(455×330)	(50×50)~(530×390)	(50×50)~(530×460)
Magazine Dimension	355×320×565	460×400×565	535×460×565	535×530×565
Air Supply	0.4~0.6Mpa
Transport Height	920±20mm (standard)
Loading Time	6 seconds
Magazine Replace Time	Approximately 20 seconds
Transport Direction	L to R, or R to L (optional)
PCB Thickness	Minimum 0.4mm
Pitches	1-4 (10mm step)
Communication	SMEMA
Machine Dimension	1100×780×1200	1400×860×1200	1500×920×1200	1600×1120×1200
Weight	Approx 140kg	Approx 180kg	Approx 220kg	Approx 230kg

Key Features

True color touch screen control interface
Mitsubishi PLC for reliable operation
Magazine capacity: top 1, bottom 1, or customized options
Selective pitch: 10mm, 20mm, 30mm, 40mm
PCB transport direction: L-R or R-L (optional)
Manual/Automatic run mode selection
Front rail fixed or rear rail fixed (optional)
Standard height for SMT application (920±20mm)
Tower light display for status indication
SMEMA signal compatibility

Application Scenarios

Electronic Manufacturing: Widely used in electronic product production lines, particularly in the loading process before placement machines and welding equipment.
Efficient Production: Reduces labor costs and improves production efficiency in high-volume manufacturing environments.
Multi-Variety Small Batch Production: Ideal for production lines requiring rapid switching between different PCB types.

Selection Considerations

Production Capacity: Select appropriate loading speed and capacity based on production requirements
Equipment Compatibility: Ensure compatibility with existing production equipment for seamless integration
Ease of Operation: Choose equipment that is easy to operate and maintain to minimize training costs

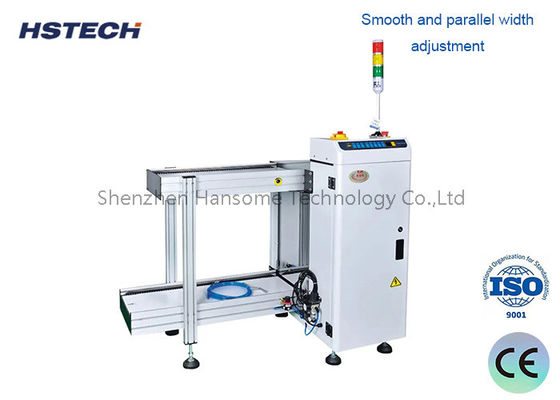

Product Images
