High Speed Panasonic PLC PCB Loader with 6 Seconds Loading Time for SMT Production Line

Brand Name:	HSTECH
Model Number:	HS-250LD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Loader

Color:

White

Power Supply:

AC110V/220V,50/60Hz

PLC:

MITSUBISHI

Relay:

Schneider

Optoelectric Switch:

Omron

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

High Speed PCB Loader

Panasonic PLC SMT Magazine Loader

6 Seconds Loading Time PCB Handling Equipment

Product Description

High Speed Panasonic PLC PCB Loader for SMT Production Line

This automated PCB loader is designed for the start of SMT production lines, efficiently transferring PCBs from magazines to downstream conveyor systems.

Application Overview

The Panasonic PLC PCB Loader serves as a critical component in PCB assembly processes, automatically loading unpopulated printed circuit boards onto production lines or into subsequent machinery such as pick-and-place systems and soldering equipment.

Key Features

True color touch screen control interface
Mitsubishi PLC control system
Magazine capacity: top 1, bottom 1, or customized configurations
Selective pitch options: 10mm, 20mm, 30mm, 40mm
PCB transport direction: Left to Right or Right to Left (optional)
Manual/Automatic run mode selection
Front rail fixed or rear rail fixed configurations
Standard SMT application height (920±20mm)
Tower light status display
SMEMA communication signal compatibility

Technical Specifications

Model	HS-250LD	HS-330LD	HS-390LD	HS-460LD
Voltage	AC110V/220V, 50/60Hz, single phase, max 300A
PCB Dimension	(50×50)~(350×250)	(50×50)~(455×330)	(50×50)~(530×390)	(50×50)~(530×460)
Magazine Dimension	355×320×565	460×400×565	535×460×565	535×530×565
Air Supply	0.4~0.6Mpa
Transport Height	920±20mm (standard)
Loading Time	6 seconds
Magazine Replace Time	Approximately 20 seconds
Transport Direction	L to R, or R to L (optional)
PCB Thickness	Minimum 0.4mm
Pitches	1-4 (10mm step)
Communication	SMEMA
Machine Dimension	1100×780×1200	1400×860×1200	1500×920×1200	1600×1120×1200
Weight	Approx 140kg	Approx 180kg	Approx 220kg	Approx 230kg

Industry Applications

Manufacturing Lines: Essential in electronics manufacturing facilities for PCB assembly, testing, and soldering processes.

Prototyping: Ideal for laboratory environments and small-scale production operations handling limited PCB quantities.

Operational Benefits

Improved Production Efficiency: Minimizes downtime associated with manual loading for smoother workflow operations
Consistency: Provides reliable PCB loading with reduced risk of damage or misalignment
Labor Savings: Reduces manual labor requirements, allowing personnel to focus on critical tasks

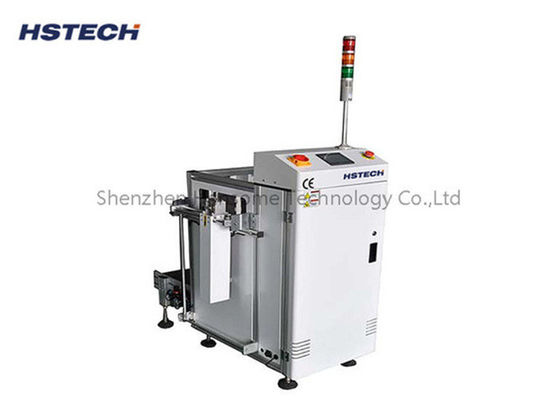

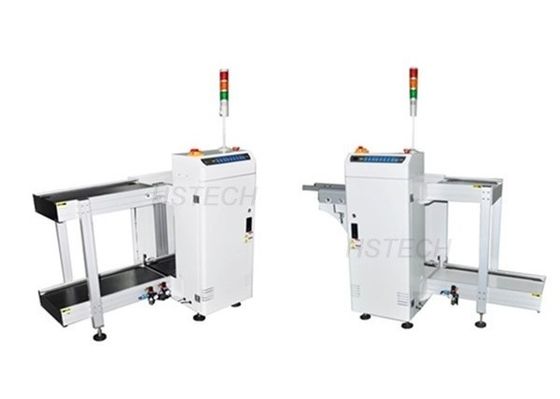

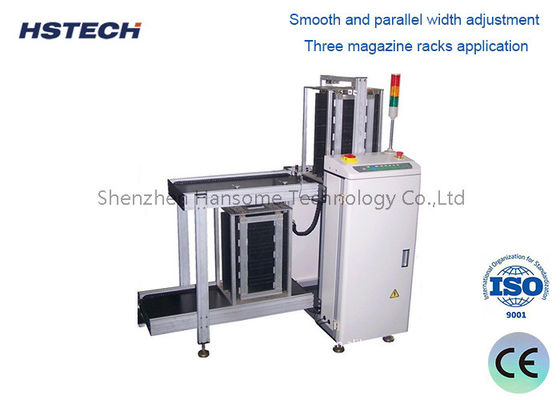

Product Images
