250mm/330mm PCB Magazine Loader with SMEMA Interface and 6 Seconds Loading Time for SMT Production Lines

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，IOS

Product Name:

250mm / 330mm PCB Loader Equipment

Other Name:

Magazine Loader

Transport Height:

920±20mm

PCB Loading Time:

Approx 6 Seconds

Transportation Direction:

L~R, Or R~L

Power:

AC110/AC220V,50HZ

Warranty:

1 Year

Interface:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

SMEMA PCB Handling Equipment

Tower Light Display PCB Handling Equipment

PCB Handling Equipment With SMEMA

Product Description

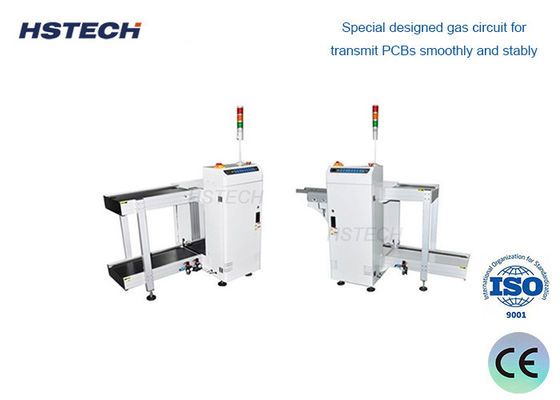

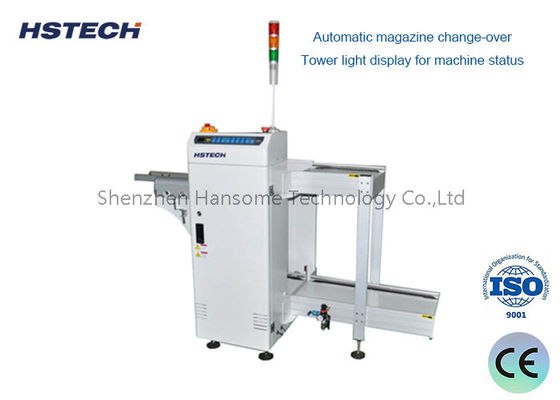

Tower Light Display PCB Magazine Loader with SMEMA

PCB Magazine Loader is automated equipment designed for the electronics manufacturing industry, specifically for the storage, organized supply, and transmission of printed circuit boards. This system integrates seamlessly with SMT production lines to enable efficient and precise automated PCB loading operations.

Application

This PCB handling equipment serves as a loading machine at the beginning of SMT production lines. It efficiently pushes PCBs from magazine racks and transports them to downstream machinery within the production line.

Key Features

4 selectable PCB widths: 250mm/330mm/390mm/460mm
Precision PCB pusher mechanism
3-color tower light for machine status display
Standard operation with 3 magazines (1 top, 2 bottom)
Standard LED button control with optional touch screen interface
Stable stainless steel construction
Smooth and parallel width adjustment
Guaranteed no PCB breakage during loading
CE certified for European market compliance

Technical Specifications

Model	HS-LD330
Product Name	PCB Magazine Loader
Transport Height	920±20mm
PCB Loading Time	Approximately 6 seconds
Magazine Replacement Time	Approximately 30 seconds
Transportation Direction	Left to Right or Right to Left
Operation	Front operation
Track Fixed Side	Front side (or as specified)
Power Supply	220V, 50/60Hz, ±10%
Air Pressure	4-6 bar
PCB Thickness	Minimum 0.4mm
Magazine Quantity	Upper side: 1 piece, Bottom side: 2 pieces
Pitch Selection	1-4 (10mm pitch)
Conveyor Speed	0.5-20 M/min or customized
Signal	SMEMA

Model Selection Guide

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB Length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine Size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

About HSTECH

Shenzhen HanSome Technology Co., Ltd (HSTECH) was established in 2012 by professional engineers with extensive experience in EMS companies. We specialize in PCB handling equipment, PCB depaneling machines, and SMT cleaning machines.

HSTECH maintains both a professional technical R&D team and an experienced marketing team that continuously researches industry trends to update products and technologies according to evolving market demands. Our commitment to innovation focuses on creating cost-efficient solutions that help customers reduce costs, minimize labor requirements, and enhance production efficiency.

Our corporate philosophy centers on "High quality and Smart" technology, guided by the principle of "Quality-Oriented and Customer-Oriented." We pursue smart factory technologies while maintaining rigorous after-sales service standards, ensuring prompt responses to quality feedback and ongoing customer support.
