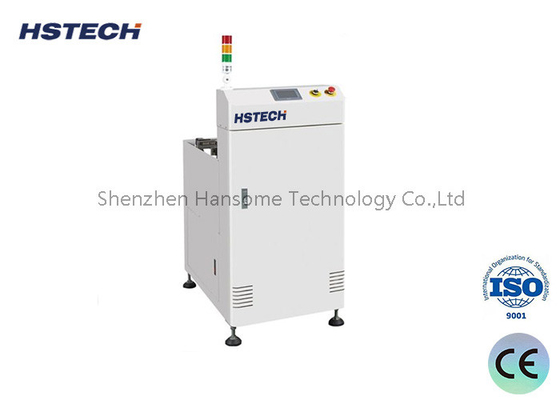

250mm/330mm PCB Loader with Mitsubishi PLC Control for Precise and Stable Operation

Brand Name:	HSTECH
Model Number:	HS-LD390
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

250mm / 330mm PCB Loader Equipment

Other Name:

Magazine Loader

Transport Height:

920±20mm

PCB Loading Time:

Approx 6 Seconds

Magazine Replace Time:

Approx 30 Seconds

Transportation Direction:

L~R, Or R~L

Operation:

Front Operation

PCB Thickness:

Min 0.4mm

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

250mm/330mm PCB Loader with Mitsubishi PLC Control for Precise and Stable Operation

Features

1.Width range: 250-460mm
2. Unique design: 3 magazines (top 1 bottom 2)
3. Control mode: LED/touch screen
4. Structure material: stable stainless steel
5. Width adjustment: smooth and parallel
6.PCB protection: zero damage during loading and unloading process
7. Quality certification: CE certification, applicable to the European market

Specification

Model	HS-LD390
Product name	PCB Loader
Transport height	920±20mm
PCB loading time	Approx 6 seconds
Magazine replace time	Approx 30 seconds
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side(or specify)
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 2 pc
Pitch selection	1-4(10mm pitch)
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Model selection

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

Application

PCB loading machine, necessary for the start of SMT production line, automatically push PCB to the downstream machine.

About Us:

Shenzhen HanSome Technology Co.,Ltd(HSTECH) was founded in 2012 by EMS senior engineers, initially focusing on PCB processing equipment, and then expanded to PCB depaneling machine and SMT cleaning machine. The company has a professional R & D team and experienced marketing team, follow the market trend, continuous innovation, provide cost-effective products, help customers to reduce costs and improve efficiency.
