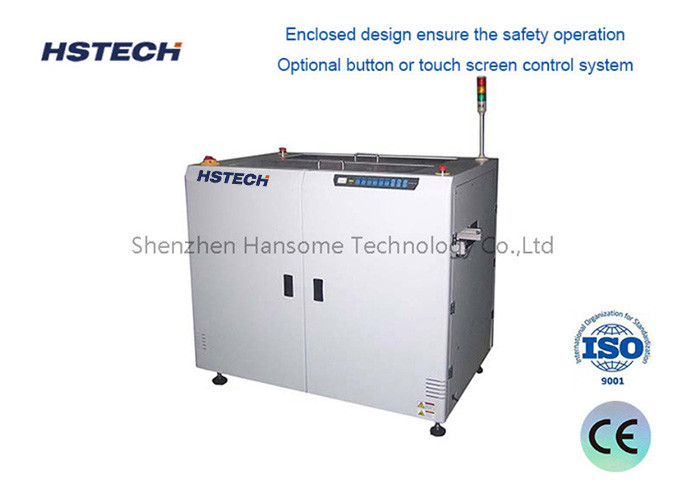

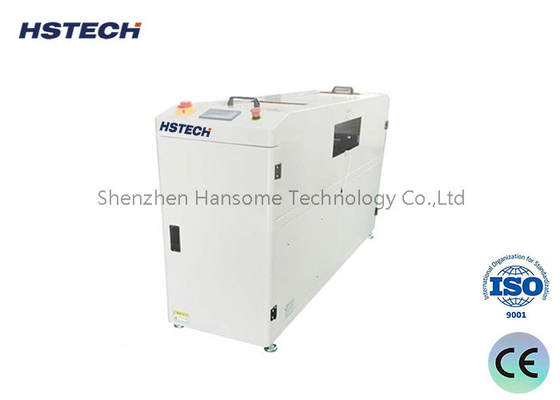

Stable and User-Friendly PCB Loader Equipment with Mitsubishi PLC Control

Brand Name:	HSTECH
Model Number:	HS-LD390
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

250mm / 330mm PCB Loader Equipment

Other Name:

Magazine Loader

Transport Height:

920±20mm

PCB Loading Time:

Approx 6 Seconds

Magazine Replace Time:

Approx 30 Seconds

Transportation Direction:

L~R, Or R~L

Operation:

Front Operation

PCB Thickness:

Min 0.4mm

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Stable and User-Friendly PCB Loader Equipment with Mitsubishi PLC Control

Features

1. Width available: 1.250/330/390/460 mm.
2.3 magazines: 1 on top, 2 on bottom.
3.LED/touch screen control.
4.Stable stainless steel construction.
5.Smooth width adjustment.
6.Loading and unloading without damaging PCB.
7.CE certification, Europe applicable.

Specification

Model	HS-LD390
Product name	PCB Loader
Transport height	920±20mm
PCB loading time	Approx 6 seconds
Magazine replace time	Approx 30 seconds
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side(or specify)
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 2 pc
Pitch selection	1-4(10mm pitch)
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Model selection

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

Application

It is a PCB loading machine designed for the starting stage of the SMT production line, and its main function is to precisely push PCB boards from the shelves to the subsequent equipment of the production line.
