Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Multiple Magazine PCB Loader

Other Name:

SMT Board Loading Machine

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Thickness:

Min 0.4mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Communication:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line

Application

The unit is designed to load printed circuit boards and transport them efficiently through the SMT line, ensuring a smooth production process.

Features

1. Modular design
2.Robust Enhanced Stability
3.Economical testing
4.Upper and lower pneumatic fixtures
5.Non-destructive loading and unloading
6.SMEMA compatible

Specification

Product name	PCB Loader Machine
Transport height	910±30mm
PCB loading time	Approx 6 seconds
Magazine replace time	Approx 30 seconds
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side(or specify)
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 2 pc
Pitch selection	1-4(10mm pitch)
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Model selection

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

About Us:

Shenzhen HanSome Technology Co.,Ltd(HSTECH) was founded in 2012 by EMS senior engineers, initially focusing on PCB processing equipment, and then expanded to PCB depaneling machine and SMT cleaning machine. The company has a professional R & D team and experienced marketing team, follow the market trend, continuous innovation, provide cost-effective products, help customers to reduce costs and improve efficiency.

About Products

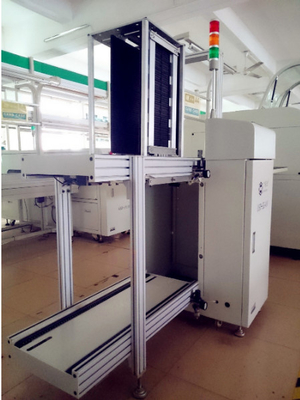

Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line 0

Control Bottun and electric box

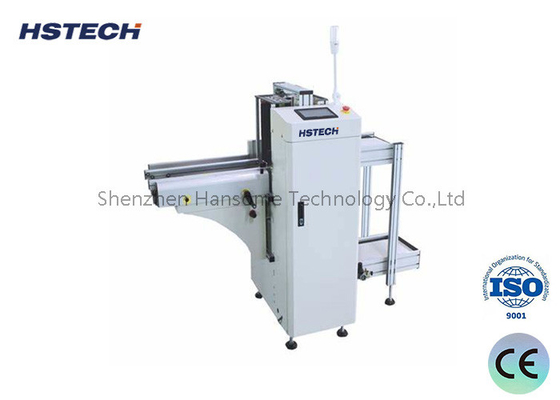

Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line 2
