High Speed PCB Loader with 6 Seconds Loading Time SMEMA Interface and Stainless Steel Structure

High Speed PCB Loader with 6 Seconds Loading Time SMEMA Interface and Stainless Steel Structure

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，IOS

Product Name:

250mm / 330mm PCB Loader Equipment

Other Name:

Magazine Loader

Transport Height:

920±20mm

PCB Loading Time:

Approx 6 Seconds

Transportation Direction:

L~R, Or R~L

Power:

AC110/AC220V,50HZ

Warranty:

1 Year

Interface:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

Button Control PCB Handling Equipment

SMEMA PCB Magazine Loader

Standard LED PCB Magazine Loader

Product Description

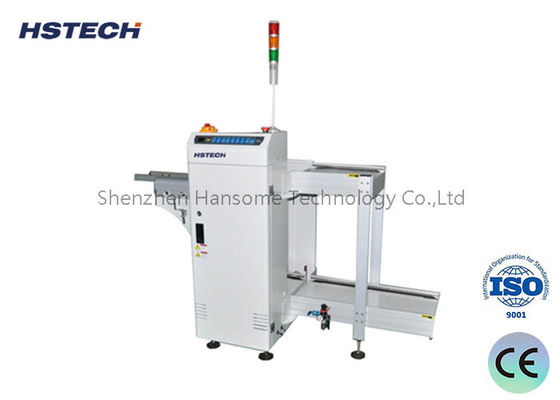

High Speed PCB Magazine Loader LED Button Control PCB Handling Equipment With SMEMA

Standard LED Button Control PCB Handling Equipment PCB Magazine Loader With SMEMA

Application

This PCB handling equipment is a PCB loading machine used at the start of SMT production lines. The machine pushes PCBs from magazine racks and transports them to downstream equipment in the production line.

Main Functions

This equipment is used at the front end of SMT production lines and features PCB board feeding functionality. Boarding time: approximately 6 seconds for box material replacement.

Key Features

4 PCB width selectable: 250mm/330mm/390mm/460mm
Precision PCB pusher mechanism
3-color light for machine status display
Standard operation with 3 magazines: top side 1 magazine, bottom 2 magazines
Standard LED button control with optional touch screen control
Stability stainless steel structure
Smooth and parallel width adjustment

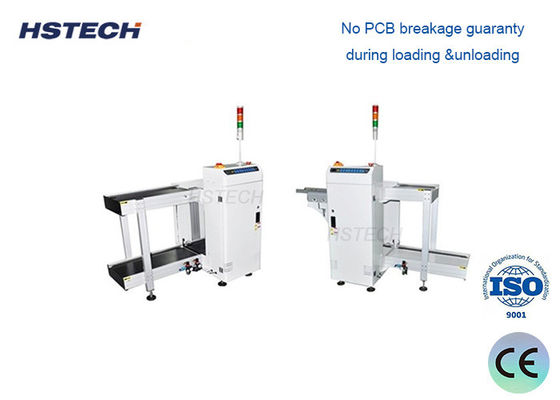

No PCB breakage guarantee during loading
CE listed, suitable for European market

Automated Feeding

Magazine Loader automatically grabs parts or components from bins or trays and feeds them into production equipment in an orderly manner. This eliminates inefficiency and instability of manual loading while improving production line automation.

High-Speed Feeding

Equipped with high-speed material grabbing mechanisms such as robotic arms or vacuum suction cups, achieving high-speed feeding of hundreds of pieces per minute to significantly improve production efficiency.

Accurate Positioning

Magazine Loader accurately identifies and locates parts to be processed, ensuring precise feeding into production equipment. Machine vision systems enable automatic positioning and deviation correction.

Compatibility

Designed with interface compatibility for various production equipment including injection molding machines, placement machines, and soldering machines.

Diversification

Available in different dimensions and bin capacities according to application requirements. Various clamping mechanisms and rack structures can be selected based on part types.

Specifications

Model	HS-LD330
Product Name	PCB Magazine Loader
Transport Height	920±20mm
PCB Loading Time	Approx 6 seconds
Magazine Replace Time	Approx 30 seconds
Transportation Direction	L~R, or R~L
Operation	Front operation
Track Fixed Side	Front side (or specify)
Power Supply	220V, 50/60Hz, ±10%
Air Pressure	4-6bar
PCB Thickness	Min 0.4mm
Magazine Quantity	Upper side: 1 pc, bottom side: 2 pc
Pitch Selection	1-4 (10mm pitch)
Conveyor Speed	0.5-20M/min or customized
Signal	SMEMA

Model Selection

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB Length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine Size	14008001200mm	16508801200mm	18009401200mm	180010101200mm
Magazine Size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	180kg	220kg	260kg

About HSTECH

Shenzhen HanSome Technology Co., Ltd (HSTECH) was established in 2012 by professional and experienced engineers with extensive background in EMS companies. We specialized in PCB handling equipment initially, then expanded to develop PCB depaneling machines and SMT cleaning machines.

HSTECH maintains a professional technical team for R&D and an experienced marketing team that researches market trends, updates products and techniques to meet evolving demands. Over the years, we have consistently innovated to create cost-efficient products that help customers save costs and labor while improving production efficiency.

HSTECH's goal is "High quality and Smart," based on the concept of "Quality-Oriented and Customer-Oriented," combined with industry features and smart technology pursuit for smart factories. For after-sale service, we insist on "responsibility," responding immediately to quality feedback and providing continuous customer support.
