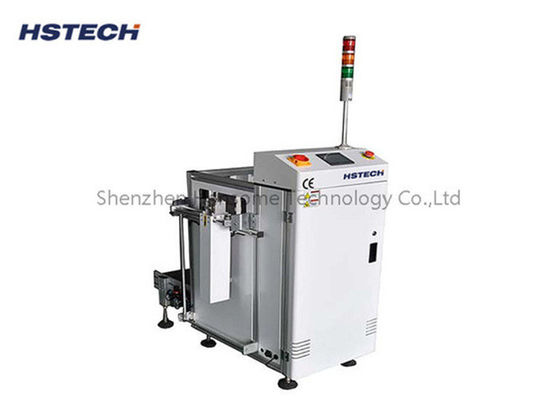

90 Degree PCB Loader with Customizable Conveyor Speed for SMT Production

90 Degree PCB Loader with Customizable Conveyor Speed for SMT Production

Application

The board loading machine is mainly used in SMT production line to realise the automatic loading of PCB boards, improve the production efficiency and quality stability, which is widely used in the electronic manufacturing industry.

Specification

Features

1,Special aluminum profile guide rail and special Houndstooth plastic chain.

2,90W brake motor drive uses ball screw to make Magazine step up and down.
3,Pneumatic clamp structure.
4,Standard work with 3 magaiznes, top side 1 magazine, buttom 2 magazines.
5,Direction: Right to Left/Left to Right.
6,The pitch of the lifting platform can be selected as 10, 20, 30, 40.
7,PLC programmable controller control.
8,With automatic loading function.
9,Pneumatic components (the push plate cylinder position is adjusted by a screw).

About Detail

About Packaging

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
