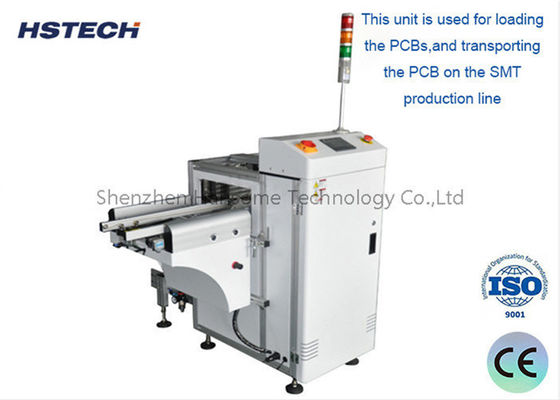

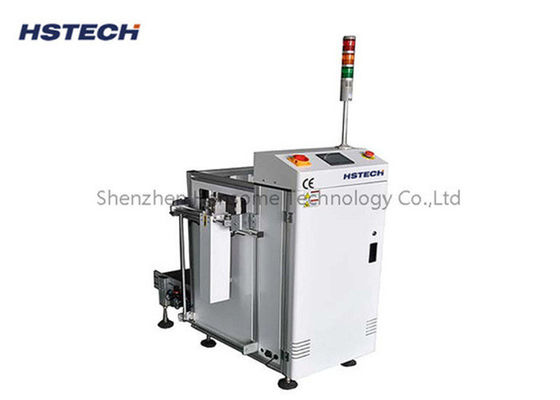

Approx 30 Seconds Magazine Replace Time 90 Degree PCB Loader for SMT Production

90 Degree PCB Loader with Customizable Conveyor Speed for SMT Production

Application

The board loading machine is a key component in SMT production lines, facilitating automated PCB board loading, enhancing productivity, and ensuring quality consistency. It is prevalent in the electronic manufacturing sector.

Specification

Features

1. Features a specialized aluminum profile guide rail and unique Houndstooth plastic chain for precision.

2. Equipped with a 90W brake motor that utilizes a ball screw mechanism for smooth magazine ascent and descent.

3. Incorporates a pneumatic clamping structure for secure board holding.

4. Standard configuration includes 3 magazines: 1 top magazine and 2 bottom magazines for efficient operation.

5. Offers flexible direction of movement: Right to Left or Left to Right, adapting to various production layouts.

6. Customizable pitch of the lifting platform available in options of 10, 20, 30, or 40 for precise alignment.

7. Controlled by a PLC (Programmable Logic Controller) for reliable automation and programming flexibility.

8. Equipped with an automatic loading function, streamlining the production process.

9. Pneumatic components feature adjustable push plate cylinder positions, facilitated by a screw for precise positioning.

About Detail

About Packaging

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
