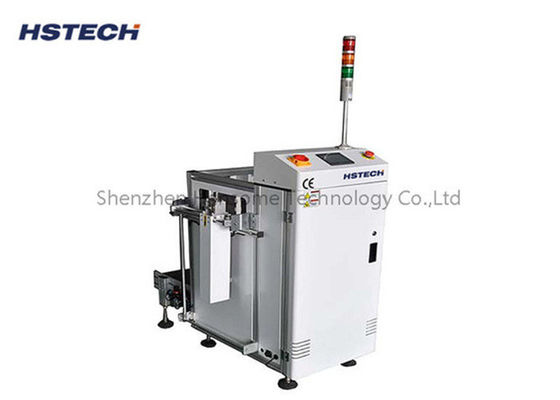

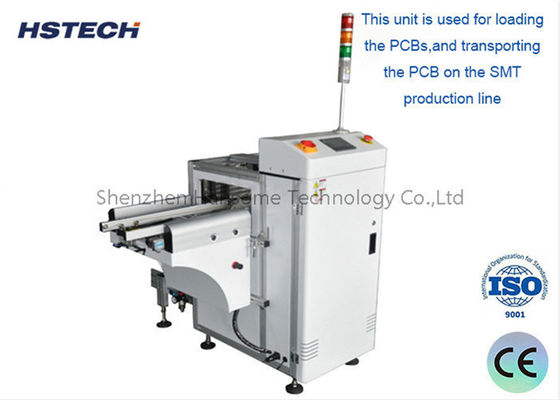

Short Length Touch Screen Control PCB Loader Machine SMEMA Communication for 90 Degree Type

Short Length Touch Screen Control 90 degree Type PCB Linking Loader Machine

Introduction

PCB loader machine is widely used in electronic manufacturing industry and is an efficient automation equipment. It accurately places components on PCB boards through automated transfer, positioning and placement systems, significantly improving production efficiency and quality. Its features include precise positioning, high degree of automation, adaptable to different sizes of PCB boards, and simple operation, which effectively reduces manpower costs and production costs. PCB loading machine is an indispensable key equipment in modern electronic product production line.

Features

1. Integrated Right-Angle (90°) Design:
   • Features a compact, right-angle (90-degree) module design for efficient space utilization and streamlined integration.
2. Compact Dimensions:
   • Comes in a highly compact length of 1200mm, with an optional even shorter version of 900mm to suit diverse production line requirements.
3. Flexible & Collapsible PCB Pusher:
   • Equipped with an innovative PCB pusher mechanism that is both flexible and collapsible, ensuring smooth and gentle handling of PCBs during transfer.
4. Triple Magazine Capacity:
   • Offers the convenience of three available magazines, maximizing material storage and minimizing downtime for reloading.
5. Smooth & Parallel Width Adjustment:
   • Features precise and smooth width adjustment capabilities, ensuring parallel alignment for precision placement and enhanced productivity.
6. SMEMA Compatibility:
   • Fully compliant with SMEMA standards, facilitating seamless integration into automated surface mount technology (SMT) production lines for streamlined operation and compatibility with industry-standard equipment.

Specification

About Product

About Packaging

About Us:

Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
