1.5M LED Board Vacuum Loader Panasonic PLC Touch Screen And Button Safety Control System

1.5M LED Board Vacuum Loader is a high-efficiency, fully automatic PCB handling machine designed for SMT production lines, specifically optimized for long-format LED PCBs up to 1500mm in length. Built with Panasonic PLC control system, this vacuum loader offers dual operation modes: optional manual button control or intelligent touch screen interface, ensuring flexible and safe operation for LED display and lighting manufacturing.

Boost your PCB assembly efficiency with our industrial-grade 1.5M LED Board Vacuum Loader. Designed for seamless integration into SMT production lines, this automatic vacuum feeder ensures precise, scratch-free handling of aluminum and FR4 substrates. Perfect for LED lighting manufacturers seeking high stability and labor-saving automation.

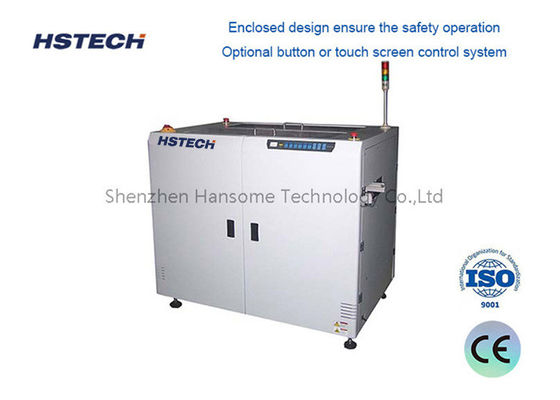

• Enclosed design ensure the safety operation.
• The top side machine cover can be opened, easy for maintenance.
• Optional button or touch screen control system.
• Panasonic PLC.
• Flexible suction nozzles positioning.
• Width adjustment available(Manual)
• Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
• By-pass mode selectable without removing PCB stack.
• SMEMA communication.

In the competitive LED manufacturing industry, efficiency and product safety are paramount. Our 1.5M Vacuum Board Loader is engineered to solve common feeding challenges, providing a reliable solution for transferring circuit boards from magazines to conveyor systems.

• High Efficiency & Automation: Fully automatic operation reduces manual labor costs and significantly increases throughput for 1.5-meter (and shorter) LED boards.
• Scratch-Free Handling: Advanced vacuum suction technology ensures gentle yet firm gripping, preventing surface damage or micro-cracks on sensitive LED aluminum substrates.
• Universal Compatibility: Adjustable width and height settings make it compatible with various magazine racks and PCB types (Single-sided, Double-sided, Aluminum-based).
• Smart Control System: Equipped with a PLC control system and a user-friendly HMI touch screen for easy parameter setting and troubleshooting.
• Robust Build Quality: Constructed with high-grade steel and precision-machined components to ensure long-term stability in 24/7 industrial environments.

This Automatic PCB Loader is widely used in:

• LED Lighting Manufacturing: Street lights, panel lights, and tube lights requiring long aluminum substrates.
• Consumer Electronics: Assembly lines for TVs, monitors, and home appliances.
• Automotive Electronics: Production of long-format automotive PCBs.

Whether you are operating a factory in Vietnam, Thailand, Germany, or the USA, our machine supports global voltage standards and offers English-language interface support for easy operation.

Don't let manual feeding slow down your output. Contact us today for a free quote on the 1.5M LED Board Vacuum Loader.
