Button Control Multiple Magazine PCB Magazine Enclosed Loader With SMEMA Compatible

Brand Name:	HSTECH
Model Number:	HS-LD250
MOQ:	1 PC
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

Multiple Magazine PCB Loader

Other Name:

SMT Board Loading Machine

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

Operation:

Front Operation

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

Button control PCB magazine loader

SMEMA compatible PCB loader

Enclosed magazine PCB loader

Product Description

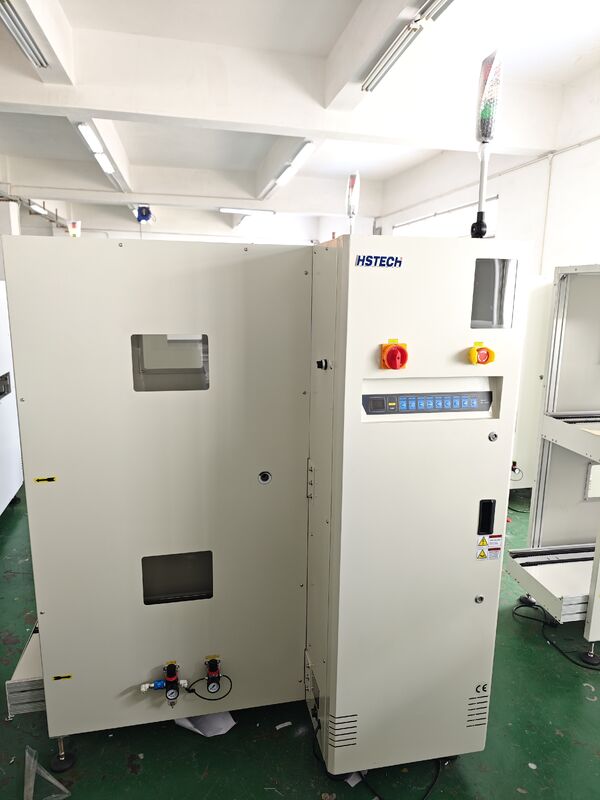

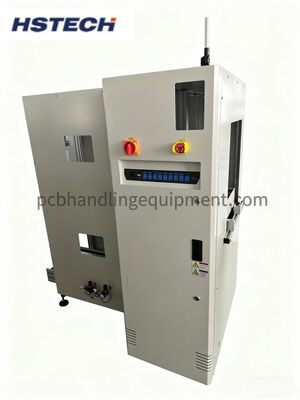

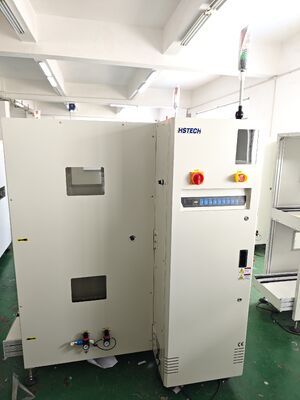

Enclosed Button Control SMEMA PCB Loader Machine

This enclosed PCB loader machine is a front-end automatic feeding equipment specially designed for SMT assembly production lines. It features fully enclosed safety housing with physical button centralized control and supports standard SMEMA communication signal docking for seamless integration with solder paste printers, component mounters, dispensing machines, reflow ovens and other SMT equipment.

Application Scenarios

Front-end feeding matching for SMT stencil printers
Automatic board supply for high-speed chip mounters
Continuous feeding supporting in-line dispensing machines and selective wave soldering equipment
Batch PCB feeding for automotive electronic control boards, FPC flexible circuits, and mini semiconductor board production
Dust-free workshop automatic feeding with fully enclosed safety protection design

Core Product Features

Modular Integrated Design: Standardized modular layout for easy disassembly, maintenance, function expansion and model conversion
Reinforced Robust Mechanical Frame: Thickened steel integrated frame structure with anti-vibration treatment for stable 24-hour continuous operation
Cost-Effective Design: Optimized structural layout lowers manufacturing cost while retaining complete feeding functions

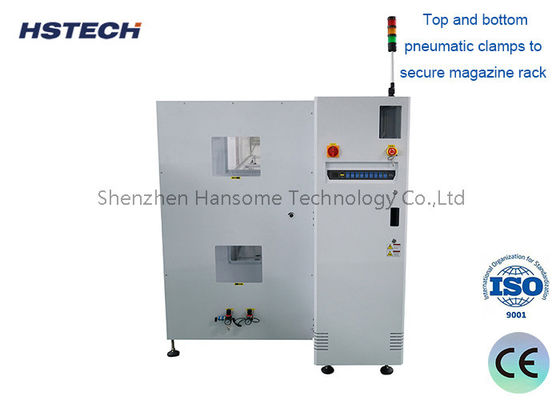

Dual Pneumatic Clamps: Top and bottom pneumatic clamping mechanism firmly locks magazine racks during operation
Zero PCB Breakage Guarantee: Soft friction conveyor belt with buffer lifting structure and precise height limit sensors prevent PCB damage
Standard SMEMA Signal Compatible: Built-in standard SMEMA communication interface for automatic signal interconnection with all mainstream SMT equipment

Technical Specifications

Item	Parameter
Product name	PCB Loader Machine
Transport height	910±30mm
PCB loading time	Approx 6 seconds
Magazine replace time	Approx 30 seconds
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side (or specify)
Power supply	220V, 50/60Hz, ±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine quantity	Upper side: 1 pc, bottom side: 2 pc
Pitch selection	1-4 (10mm pitch)
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Model Specifications

Model	HS-LD250	HS-LD330	HS-LD390	HS-LD460
Efficient PCB length	50×50~350×250mm	50×50~455×330mm	50×50~530×390mm	50×530×460mm
Machine Size	1400×800×1200mm	1650×880×1200mm	1800×940×1200mm	1800×1010×1200mm
Magazine size	355×320×563mm	460×400×563mm	535×460×570mm	535×530×570mm
Weight	140kg	180kg	220kg	260kg

Applicable Industries

SMT electronics assembly factory Automotive electronics manufacturing New energy control board production FPC flexible circuit processing Semiconductor packaging workshop Medical electronic equipment production Intelligent wearable device factory
