High Throughput NG OK PCB Unloader Fast Magazine Change Over SMT PCB Handling Equipment

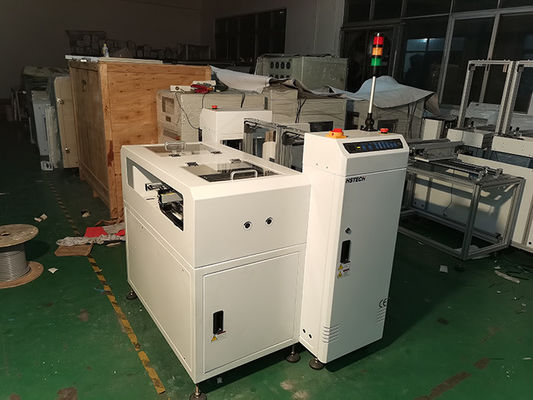

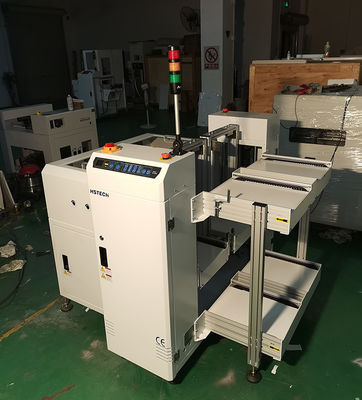

The Automatic SMT Line PCB NG OK Unloader is a highly efficient, intelligent PCB handling equipment designed to streamline post-inspection sorting processes. Positioned after AOI (Automated Optical Inspection) or testing stations, this advanced PCB NG OK Unloading Machine automatically identifies and separates good (OK) boards from defective (NG) boards based on inspection signals. Engineered for seamless integration into modern SMT production lines, this PCB Sorting Machine ensures accurate board routing, prevents mixed batches, and significantly enhances overall manufacturing efficiency.

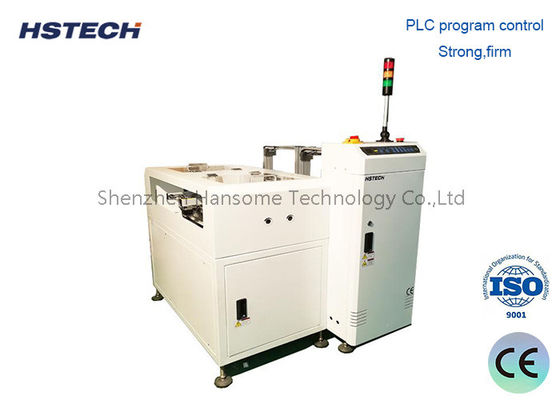

1. PLC program control.
2. Strong,firm
3. Optional control button or touch screen control up to customers.
4. Top and bottom pneumatic clamps to secure magazine rack.
5. No PCB breakage guaranty during loading&unloading.
6. Automatic NG/OK board separate store NG/OKboards.
7. NG/OK signal from the upstream AOI machine.
8. Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9. Enclosed machine design for safety operation.
10. Three color tower light display.
11. SMEMA compatible.

• Post-AOI Sorting: Automatically separating passed and failed boards after automated optical inspection.
• Functional Testing Lines: Routing PCBA units based on ICT/FCT test results.
• SMT Peripheral Integration: Serving as a buffer and sorting station in high-speed SMT production lines.
• Automotive & Medical Electronics: Ensuring zero-defect traceability by strictly isolating NG boards from OK production batches.
• Consumer Electronics Assembly: High-volume board sorting for smartphones, tablets, and wearable devices.

• Proven Sorting Accuracy: Our NG OK Board Separator technology is rigorously tested to achieve near 100% sorting precision, protecting your production integrity.
• Customizable Configurations: Whether you need a Dual Track PCB NG OK Unloader Machine or a specialized size adapter, we tailor our PCB handling equipment to your exact line requirements.
• Industrial-Grade Durability: Built with premium components, our SMT Line PCB NG OK Unloader is engineered for 24/7 continuous operation with minimal maintenance.
• Global Technical Support: Backed by a dedicated engineering team, we provide comprehensive installation guidance, remote troubleshooting, and responsive after-sales service.
• Maximized ROI: By automating the sorting process, this PCB NG OK Unloading Machine reduces labor costs, prevents costly rework, and boosts your overall line OEE.

Ready to optimize your SMT line sorting process? Contact us now for a customized quote and free technical consultation. Click here to download our full product catalog or request a live demonstration video of our Automatic SMT Line PCB NG OK Unloader in action. Let us help you achieve seamless, zero-defect PCB handling!
