PCB Magazine Unloader Module Design Stability Enhanced By Robust Design Three Magazine Racks Application

PCB Magazine Unloader Robust Design Enhanced Stability Module Type Three Magazine Racks Automatic SMT Handling Equipment

Product Introduction

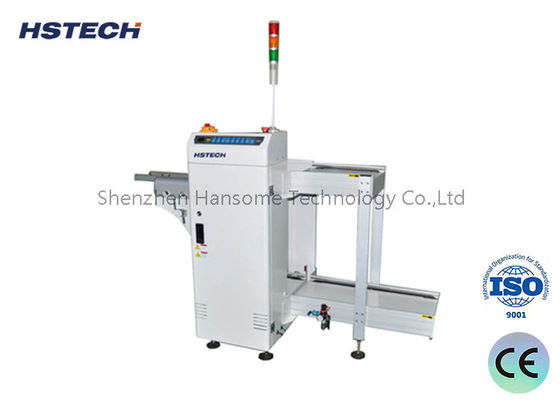

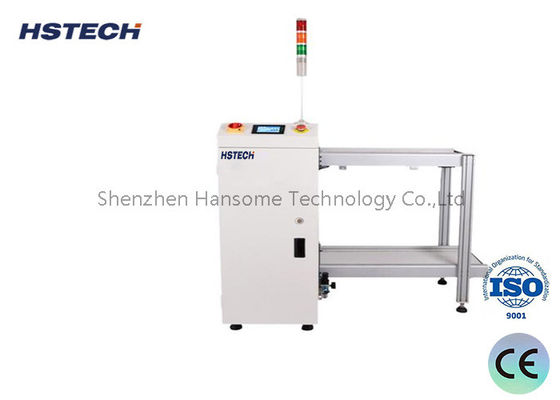

This high-performance PCB Magazine Unloader is a fully automatic SMT handling equipment specially designed for end-line PCB collection and magazine stacking in electronic assembly production lines. Featuring robust enhanced structure and optimized module design, this automatic magazine unloader is equipped with three magazine racks to support continuous unmanned PCB unloading and material replacement. Adopting industrial PLC intelligent control system and high-precision stepper motor drive, the machine realizes stable board collection, precise positioning and smooth conveying without manual operation. Fully compatible with standard SMT magazines and supporting SMEMA communication interface, the PCB magazine unloader can seamlessly connect with upstream SMT machines such as reflow ovens, inspection equipment and dispensing machines. It effectively solves intermittent production shutdowns caused by manual board collection, greatly improving the continuity and automation level of SMT mass production lines.

Features

• Module design.
• Stability enhanced by robust design.
• Economic design arm test.
• Smooth and parallel width adjustment.
• Three magazine racks application.
• Top and bottom pneumatic clamps to secure magazine rack.
• No PCB breakage guaranty during loading &unloading.
• SMEMA compatible.

Technical details

Specification

Operation diagram

Versatile Application Scenarios

Our PCB Magazine Unloader is a versatile workhorse tailored for a wide range of automated manufacturing environments:

• SMT End-of-Line: Serving as the primary exit point for automated assembly, receiving finished boards from reflow ovens and stacking them for downstream testing or packaging.
• Quality Inspection Stations: Integrating with AOI (Automated Optical Inspection) systems to safely unload boards post-inspection, with options for OK/NG sorting to prevent defective boards from moving forward.
• Automotive & Medical Electronics: Providing gentle, consistent handling for sensitive, high-precision PCBs where strict quality control and zero-defect handling are mandatory.
• Smart Factory Upgrades: Integrating seamlessly with PCB magazine loaders, stackers, and conveyors to create a fully automated, lights-out production environment that maximizes OEE.

Why Choose Our PCB Magazine Unloader

Enhanced Robust Module Stability: Different from ordinary unloader equipment with simple frame structure, our PCB magazine unloader adopts upgraded reinforced module design. The overall structural stability is greatly improved to adapt to long term high frequency factory operation, effectively avoiding common problems such as equipment shaking, positioning deviation and unstable board collection.

Unique Three Magazine Racks Continuous Production Design: Equipped with three magazine racks to realize automatic cycle switching, solving the production bottleneck of traditional single rack unloader that needs frequent shutdown replacement. It greatly improves production continuity and line efficiency, bringing higher production output for manufacturing enterprises.

Reliable Zero Damage PCB Protection: With optimized buffer conveying and soft stacking technology, the equipment thoroughly avoids PCB scratch, breakage and static damage during unloading process. Strict industrial testing ensures stable board collection quality and reduces enterprise material waste and rework cost.

Strong Line Compatibility & Easy Installation: Standard SMEMA interface and flexible structural design make the unloader perfectly compatible with mainstream SMT equipment in the market. It supports quick line docking without complicated debugging, saving installation time and production line upgrade cost.

Strict Industrial Quality Control: Every PCB magazine unloader undergoes continuous operation aging test, precision calibration test and safety performance inspection before delivery. Compliant with international industrial manufacturing standards, the equipment features low failure rate, strong durability and stable long term operation performance.

Professional Full Lifecycle Service: We provide one stop services including equipment installation guidance, operation training, technical debugging and after sales maintenance. Professional technical support ensures stable equipment operation and solves all usage problems for customers in a timely manner.

Ready to Automate Your SMT End-of-Line?

Don't let manual board handling bottleneck your production or compromise product quality at the final stage. Upgrade to automated efficiency today. Contact us now for a customized quotation, detailed CAD drawings, or to discuss your specific SMT manufacturing needs. Let our engineering team design the perfect material handling solution to keep your assembly line running at peak performance.
