90 Degree L Type PCB Unloader High Speed Intelligent SMT Production Line Automatic Unloading Machine

90 Degree L Type PCB Unloader Automatic High Speed Intelligent Magazine Unloading Device SMEMA Compatible ESD Protected Stable Operation For SMT Electronic Assembly Line

Product Introduction

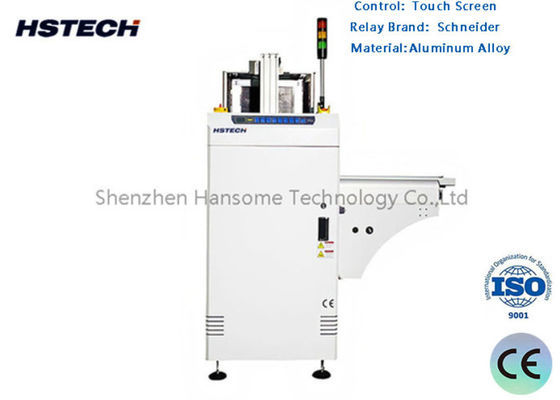

This high intelligent 90 Degree L Type PCB Unloader is a professional automatic SMT PCB handling equipment specially developed for corner layout and space limited SMT production lines. Adopting exclusive L shaped 90 degree right angle structural design, this automatic PCB magazine unloader realizes seamless 90 degree steering transmission and continuous board collecting function, perfectly solving the layout restriction of traditional straight type unloading machines. Equipped with industrial PLC control system and high precision stepper motor driving system, the 90 Degree L Type PCB Unloader delivers stable high speed PCB unloading, accurate magazine positioning and orderly board stacking without manual intervention. Fully compatible with standard SMEMA communication protocol and ESD industrial standards, the machine can be perfectly docked with upstream SMT equipment such as reflow ovens, AOI inspection machines and dispensing equipment. As a compact and high efficiency unloading solution, it greatly optimizes workshop space utilization and improves the overall automation continuity of electronic assembly production lines.

Features

1. Module design.
2. Stability enhanced by robust design.
3. Economic design arm test.
4. Smooth and parallel width adjustment.
5. Three magazine racks application.
6. Top and bottom pneumatic clamps to secure magazine rack.
7. No PCB breakage guaranty during loading &unloading.
8. SMEMA compatible.

Technical details - 90degree L type PCB unloader

Specification

Machine drawing

Versatile Application Scenarios

This 90-Degree L-Type PCB Unloader is highly adaptable and tailored for diverse manufacturing environments:

• Compact SMT Lines: Ideal for factories with limited floor space where traditional linear unloaders cannot fit, effectively redirecting the production flow at a 90-degree angle.
• SMT End-of-Line Automation: Serving as the primary exit point for automated assembly, receiving finished boards from reflow ovens and stacking them for downstream testing or packaging.
• Quality Inspection Stations: Integrating with AOI (Automated Optical Inspection) systems to safely collect boards post-inspection, supporting OK/NG sorting to prevent defective boards from moving forward.
• Smart Factory Upgrades: Integrating seamlessly with PCB magazine loaders, stackers, and turning conveyors to create a fully automated, lights-out production environment that maximizes OEE.

Why Choose Our 90 Degree L Type PCB Unloader

Exclusive Space Saving L Type 90 Degree Design: Different from traditional straight PCB unloaders with large floor occupation, our 90 Degree L Type PCB Unloader creatively utilizes workshop corner space. It optimizes production line layout, saves valuable factory floor area, and solves the layout bottleneck of narrow workshops, bringing higher space utilization and production flexibility.

Reliable 90 Degree Steering & Zero Damage Performance: Through repeated structural optimization and industrial testing, the equipment realizes ultra stable 90 degree PCB steering transmission. It effectively avoids common problems such as board offset, stacking confusion and surface damage during angle conversion, ensuring high yield rate and consistent product quality.

Strong Line Adaptability & Plug and Play Installation: With standard SMEMA interface and flexible structural design, this L type PCB unloader can be quickly connected with all mainstream SMT equipment on the market. It requires no complex line modification, greatly saving installation time and production line upgrading cost for manufacturers.

Intelligent High Efficiency & Cost Saving: Full automatic intelligent operation reduces manual participation and operation errors, significantly improving production line efficiency and reducing long term labor and maintenance costs. The stable and durable structure lowers equipment failure rate and production loss, bringing higher economic benefits.

Strict Industrial Quality Assurance: Every 90 Degree L Type PCB Unloader undergoes strict factory aging test, precision calibration and safety inspection. Adhering to international industrial manufacturing standards, the equipment features stable performance, strong compatibility and long service life, fully meeting high standard industrial production requirements.

Complete Professional After Sales Service: We provide one stop full lifecycle services including equipment installation guidance, operational training, technical debugging and regular after sales maintenance. Professional technical support ensures long term stable operation of the equipment and eliminates all usage concerns for customers.

Ready to Optimize Your SMT End-of-Line?

Don't let limited floor space or manual board handling bottleneck your production. Upgrade to the space-saving efficiency of our 90-Degree L-Type PCB Unloader today. Contact us now for a customized quotation, detailed CAD drawings, or to discuss your specific SMT manufacturing needs. Let our engineering team design the perfect material handling solution to keep your assembly line running at peak performance.
