High Stability Automatic PCB Unloader Magazine Rack for SMT Production Line

High Stability ESD Safe Automatic PCB Magazine Rack Unloader SMEMA Compatible For Printed Circuit Board Handling SMT Assembly Production Line

Product Introduction

The PCB Magazine Unloader is a high-precision automatic PCB handling equipment specially designed for the tail end of standard SMT assembly lines. Also known as the automatic PCB unloader and SMT magazine unloader, this industrial-grade device is engineered to automatically receive, convey, and stack finished printed circuit boards into standard PCB magazine racks, realizing fully unmanned board collection and unloading operations.

Equipped with a mature industrial PLC intelligent control system and standard SMEMA communication interface, this automatic PCB magazine unloader can achieve seamless connection with reflow ovens, AOI inspection machines, SPI equipment and other downstream SMT machines. With high-precision sensor detection and stable pneumatic conveying structure, it ensures continuous, smooth and damage-free PCB unloading. Featuring professional ESD anti-static design and ultra-stable mechanical structure, the equipment effectively solves common problems such as manual board collection damage, low efficiency and unstable production rhythm, becoming essential core equipment for automated SMT production workshops.

Technical Details

Specification

Features

• Module design.
• Stability enhanced by robust design.
• Economic design arm test.
• Smooth and parallel width adjustment.
• Three magazine racks application.
• Top and bottom pneumatic clamps to secure magazine rack.

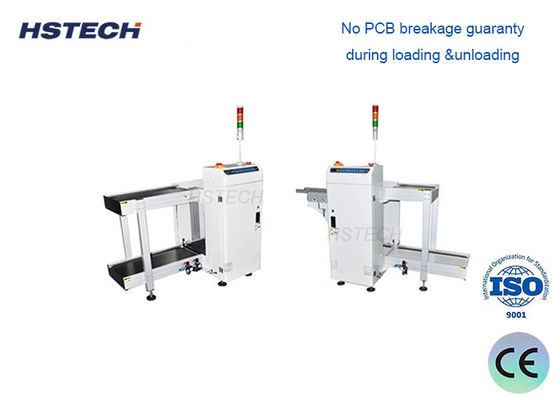

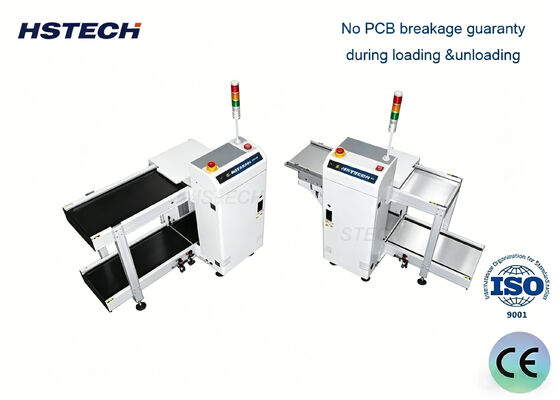

• No PCB breakage guaranty during loading &unloading.
• SMEMA compatible.

Machine drawing

Versatile Application Scenarios

Our PCB Magazine Unloader is a versatile workhorse tailored for a wide range of automated manufacturing environments:

• SMT End-of-Line: Serving as the primary exit point for automated assembly, receiving finished boards from reflow ovens and stacking them for downstream testing or packaging.
• Quality Inspection Stations: Integrating with AOI (Automated Optical Inspection) systems to safely unload boards post-inspection, with options for OK/NG sorting to prevent defective boards from moving forward.
• Automotive & Medical Electronics: Providing gentle, consistent handling for sensitive, high-precision PCBs where strict quality control and zero-defect handling are mandatory.
• Smart Factory Upgrades: Integrating seamlessly with PCB magazine loaders, stackers, and conveyors to create a fully automated, lights-out production environment that maximizes OEE.

Why Choose Our PCB Magazine Unloader?

We understand that in industrial manufacturing, reliability and precision are non-negotiable. Our PCB Magazine Unloader is built with a robust aluminum alloy frame and high-quality pneumatic components that ensure stable, long-lasting operation. By utilizing precision screw rods for lifting, imported electric-brake motors, and intuitive human-machine interfaces, we deliver a machine that operates smoothly and requires minimal maintenance. Backed by comprehensive technical support and a commitment to quality, our equipment is designed to reduce your operational costs, protect your products, and boost your overall equipment effectiveness.

Ready to Automate Your SMT End-of-Line?

Don't let manual board handling bottleneck your production or compromise product quality at the final stage. Upgrade to automated efficiency today. Contact us now for a customized quotation, detailed CAD drawings, or to discuss your specific SMT manufacturing needs. Let our engineering team design the perfect material handling solution to keep your assembly line running at peak performance.
