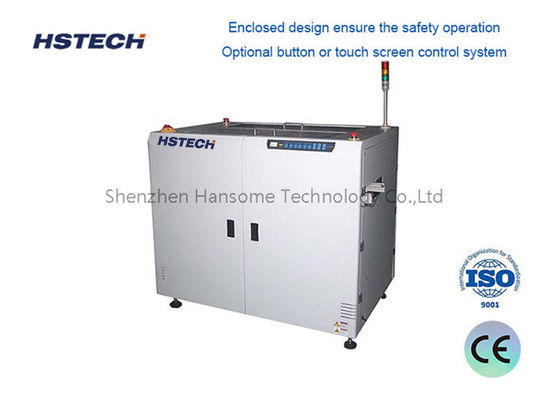

1.5M LED Board Vacuum Loader With 10 Seconds Loading Time And Vacuum Suction Nozzles

The 1.5M LED Board Vacuum Loader is a high efficiency automatic loading machine specially designed for long size LED board and PCB board production lines. Equipped with professional vacuum suction nozzles and optimized transmission structure, this vacuum loader supports a fast 10 seconds loading cycle to realize continuous and stable board feeding operations. As a core SMT production line loader, it perfectly matches the production demand of 1.5-meter long LED panels, solving the problems of manual feeding instability, low efficiency and easy board damage in traditional production modes. The whole machine adopts standardized industrial design, featuring automatic induction feeding, intelligent vacuum adsorption control and seamless docking with upstream and downstream SMT equipment, which greatly improves the overall automation level of LED assembly and PCB manufacturing processes.

• Enclosed safety design for secure operation
• Top-side machine cover for easy maintenance access
• Optional button or touch screen control system
• Panasonic PLC for reliable automation control
• Flexible suction nozzles positioning
• Manual width adjustment capability
• Self-programmed error display with maintenance instructions
• By-pass mode selection without PCB stack removal
• SMEMA communication integration

This vacuum bare board loader is an essential component for high-volume electronics manufacturing, specifically tailored for:

• LED Lighting Production: Perfect for long PCB strips used in LED tubes, panel lights, and street lighting.
• SMT Assembly Lines: Acts as the primary upstream feeder for solder paste printers and SMT pick-and-place machines.
• Large Format PCB Handling: Ideal for industries requiring the automated feeding of extra-long bare boards without manual intervention.

• Precision Engineering: Built with a robust structure and premium Panasonic PLC to ensure long-term stability and precision in demanding 24/7 manufacturing environments.
• Flexible Adaptability: The adjustable suction nozzles and manual width adjustment allow for quick changeovers between different PCB sizes, minimizing downtime.
• Enhanced Operational Safety: The fully enclosed machine cover protects operators from moving parts while allowing easy top-opening access for routine maintenance.
• Cost-Effective Efficiency: By automating the feeding process, it reduces labor costs, minimizes human error, and prevents board contamination or physical damage.

Don't let manual board loading slow down your production. Equip your factory with the 1.5M LED Board Vacuum Loader and experience unmatched efficiency and reliability. Contact us today for a free consultation, custom quotation, or to request a product demonstration. Let our automated handling solutions drive your manufacturing success!
