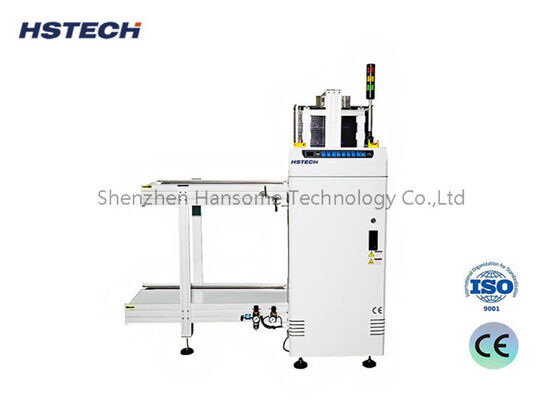

Stainless Steel SMT Line Magazine Loader Automatic PCB Handling Equipment for Bare PCB Loading

Stainless Steel Structure SMT Line Automatic Magazine Loader Industrial PCB Handling Equipment for Bare PCB Magazine Loading Feeding and Board Supplying for Electronic SMT Assembly Production Line

In high-volume Surface Mount Technology (SMT) manufacturing, seamless and reliable board feeding is critical to maintaining line efficiency. Our Automatic PCB Magazine Loader is specifically engineered to automate the loading process, transferring bare PCBs from standard magazines directly onto the production line. By replacing manual handling, this equipment not only eliminates the risk of pad oxidation and physical damage but also drastically reduces labor costs. Designed with a premium aluminum alloy frame and high-precision components, this PCB loader guarantees stable, accurate, and continuous material flow for modern smart factories.

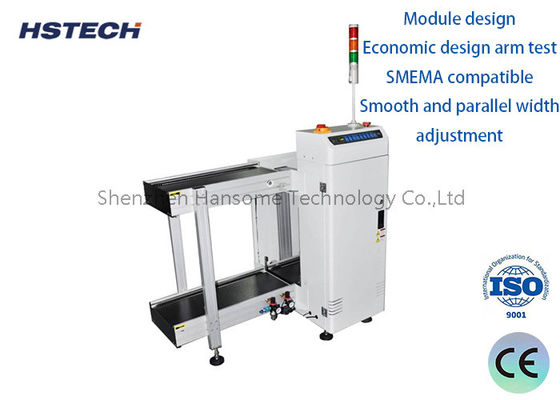

Features

1. Tradition LED button control system.
2. Work with 3 magazines racks.
3. Stability stainless steel structure.
4. Smooth and parallel width adjustment.
5. 3 color LED light display.
6. Top and bottom pneumatic clamps to secure magazine rack.
7. No PCB breakage guaranty during loading &unloading.
8. SMEMA compatible.
9. CE listed, suitable for Europe market.

Specification

Model selection
