Stainless Steel SMT Line Magazine Loader PCB Handling Equipment Automatic ESD Bare PCB Magazine Feeder SMEMA Compatible SMT Board Loading Machine for SMT Assembly Production Line

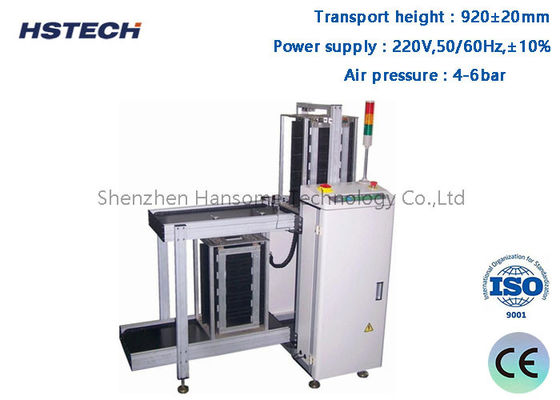

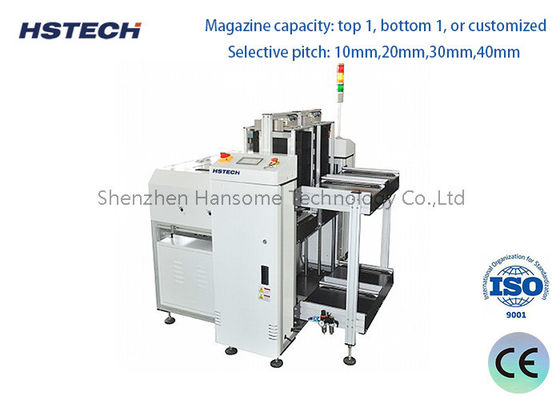

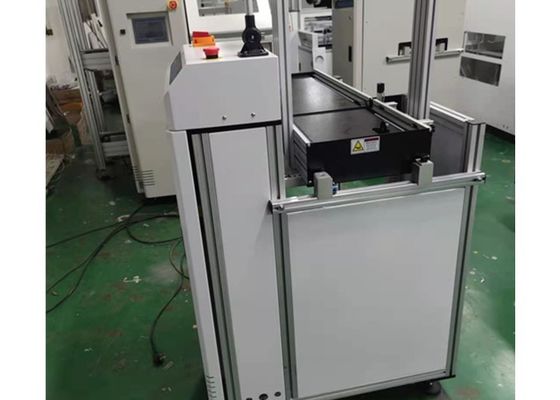

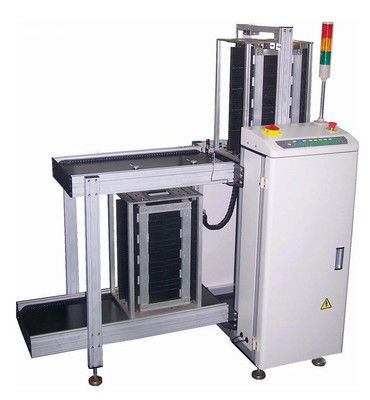

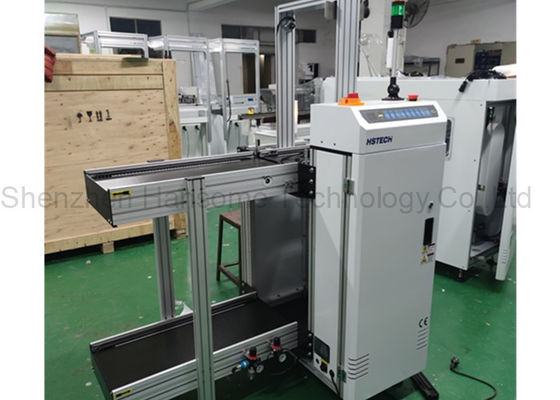

The Magazine Loader is an automatic loading system designed for PCB manufacturing, SMT workshops and electronics assembly lines. It automatically transfers PCB magazines, SMT magazines, rack magazines and workpiece carriers from storage racks or magazine stacks into the production line. The system helps reduce manual loading, improve line continuity, minimize handling errors and support stable automated material flow.

With stable magazine handling and reliable sensor control, the equipment helps prevent magazine jamming, misfeeding, board scratching and manual loading inconsistencies. It is suitable for factories that want to improve automation levels, reduce operator workload and maintain consistent production rhythm.

Features

• Tradition LED button control system.
• Work with 3 magazines racks.
• Stability stainless steel structure.
• Smooth and parallel width adjustment.
• 3 color LED light display.
• Top and bottom pneumatic clamps to secure magazine rack.
• No PCB breakage guaranty during loading &unloading.
• SMEMA compatible.
• CE listed, suitable for Europe market.

Specification

Model selection
