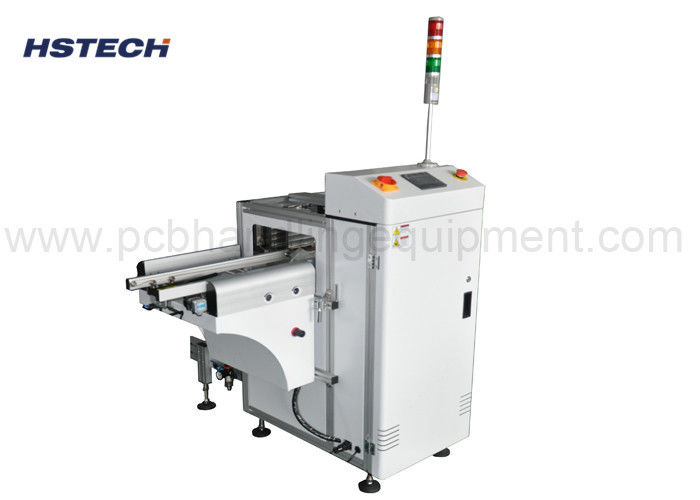

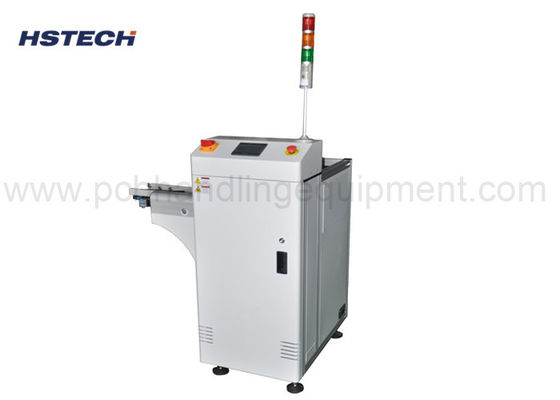

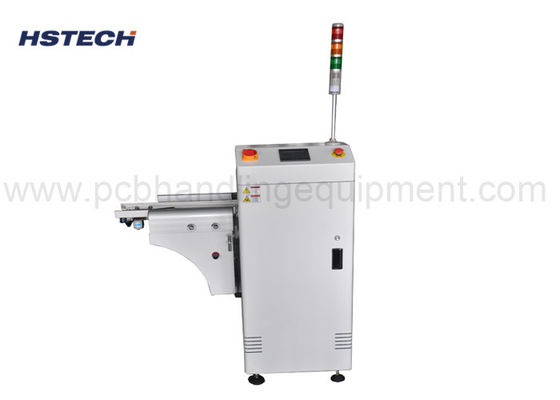

SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment

SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment
SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment

Large Image :  SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month

SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment

Description
Product Name: 90 Degree Right Angle PCB Unloader Power Supply: AC110V/220V,50/60Hz
Air Pressure: 4-6 Bar PCB Size: 50*50~530*460mm
Pitch Selection: 10-40mm Conveyor Speed: 0.5-20M/min Or Customized
Transport Belt: Flat Belt Magazine Qty: 2 Magazines
High Light:

SMEMA Signal PCB Unloader Equipment

,

2 Magazines PCB Unloader Equipment

SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment



Application



This unit is compact PCB unloader machine, used for collect PCBs at the end of SMT production line.



Features



1, 90 degree right angle PCB unloading, save the factory room.

2, Stability enhanced by robust design.

3, PLC control, touch screen control panel.

4, Flat transport belt.

5, Economic design arm test, enclosed design ensure the safety operation.

6, Smooth and parallel width adjustment.

7, Double magazine application.

8, Top and bottom pneumatic clamps to secure magazine rack.

9, No PCB breakage guaranty during loading &unloading.

10, SMEMA compatible.



Specification



Product name right angle PCB unloader
Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 1 pc
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model HS-CU250 HS-CU330 HS-CU390 HS-CU460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine dimension 1100*1200*1200mm 1310*1360*1200mm 1430*1480*1200mm 1430*1620*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 200kg 260kg 300kg



SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment 0SMEMA Aluminum Material Signal 530*460mm 90 Degree PCB Unloader Equipment 1
