| Place of Origin: | China |
| Brand Name: | Chinese brand |
| Certification: | CE |
| Model Number: | TC-60 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Special design aluminum box |
| Delivery Time: | 3~5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |
| Product Name: | Thermal Profile | Channels: | 4Channels, 6 Channels, 8 Channels |
|---|---|---|---|
| Accuracy: | ± 0.5˚C | Resolution: | 0.1˚C |
| Interal Operating Temp: | 0˚C~85˚C | Sample Rate: | 0.1 To 10 Readings/sec |
| Record Mode: | Monitor/record | Connection Mode: | RS232/USB |
| High Light: | RS232 USB Thermal Profiler,100mW USB Thermal Profiler,3.6VDC Thermal Break Profile |
||

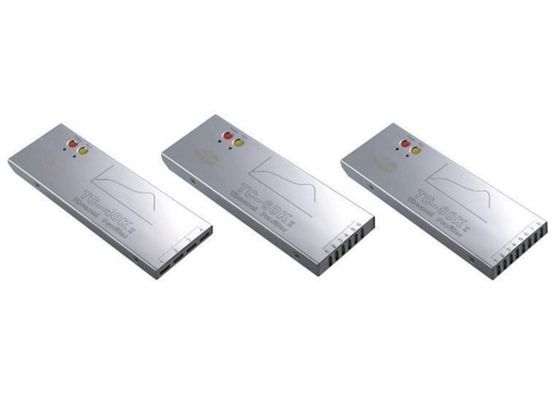

6 Channels 8 Channels K type RS232/USB Connection Port Thermal Profiler
Introduction
This brand thermal Profiler is a high quality,Chinese brand thermal profiler, with 4 channels, 6 channels, and 8 channels options.
Standard Composition
1. Thermal profiler 2. Insulation box
3. Temperature test line 4. Data download line
5. Charger 6. Hi-temp adhesive tape
7. Software CD 8. “+” screwdriver 9. Tweezers
10. Insulated gloves 11.Solder wire
12. Scissors 13. Instrument box
14. User Manual 15. Acceptance Certificate
9, Full Original Package, with original Thermal Couples, Protective Shield, Software, etc
Specifications
| Model | TC-60KII |
| Thermal couple | K-type thermal couple |
|
Sampling interval |
0.05sec---600sec Set with software |
| Internal Operating Temp. | 0˚C to 85˚C |
| Record mode |
120000point/channel, Can record 256 sets profile |
| Resolution | 0.1℃ |
|
Temperature measuring range |
0—600℃ OR 0—1200℃ |
|
Temperature measuring accuracy |
±1.0℃ |
|
Total power |
≤100mW |
|
Operating voltage |
3.6VDC, rechargeable battery |
|
Insulation box |
252(L)×88(W)×30(H)mm |
|
Start Mode |
Manual, specified time or specified temperature |
| Recode mode |
RS232/USB |
| Dimension |
208(L)×75(W)×15(H)mm 208(L)×75(W)×19(H)mm |
