| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-NK250 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | NG/OK Unloader | PCB Transporting Height: | 910±30mm |
|---|---|---|---|
| PCB Dimension: | 50*50~330*250mm | Power Supply: | AC220V, 50/60Hz |
| Magazine Qty: | Each Rail 2 Magazines | Warranty: | 1 Year |
| Usage: | SMT Production Line,SMT Assembly Line | Condition: | New |
| High Light: | SMT Production Line PCB Unloader,Board Separating Magazine PCB Unloader,AC220V SMT Production Line Unloader |
||

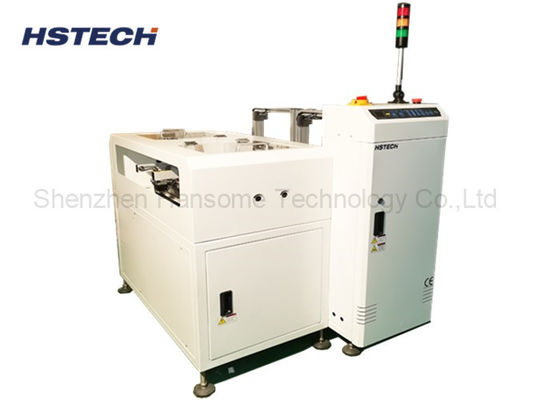

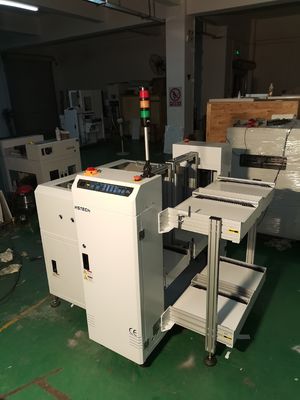

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.
|
Features
1, PLC programing control.

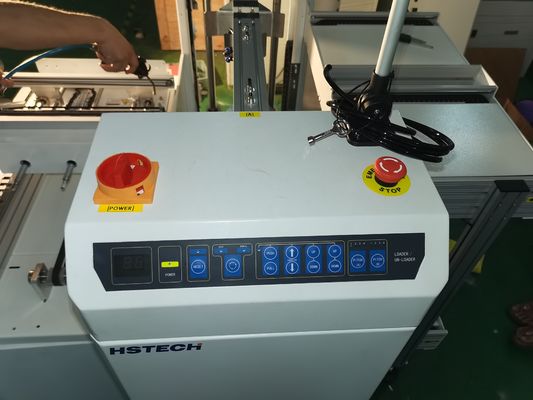

2, Using friendly ‘soft touch’ LED membrane control panel
3, Selectable pitch setting.
4, Toggle level clamps provided for magazine alignment.
5, Pneumatic pusher’s pressure regulated.
6, High throughput with short magazine change-over time.
7, Collect NG/OK board from AOI, automatic store the NG/OK boards.
8, Standard SMEMA communication interface.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
