Home ProductsPCB Unloader

40mm Pitch 90 Degree PCB Magazine Unloader 20M/Min SMT

Certification
China Shenzhen Hansome Technology Co., Ltd. certification
China Shenzhen Hansome Technology Co., Ltd. certification
Customer Reviews
HSTECH's equipment totally fit our requirement, the machine working stable and no errors, it help us a lot during the electronic production, thanks, we like it!

—— Bradly

The machines assemblyed and packed very well,easy installation under the particular directions, more important the working efficiency and accuracy is over expected. We are happy with these equpiments, we will try new cases for you.

—— Jason

The cleaner are working very well, thanks for the service!

—— Emma

The parts we purchased with very good quality, your stock parts item is exhaustive and the service reaction is fast, it's really help.

—— Eduardo

I'm Online Chat Now

40mm Pitch 90 Degree PCB Magazine Unloader 20M/Min SMT

40mm Pitch 90 Degree PCB Magazine Unloader 20M/Min SMT
40mm Pitch 90 Degree PCB Magazine Unloader 20M/Min SMT

Large Image :  40mm Pitch 90 Degree PCB Magazine Unloader 20M/Min SMT

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-CU390
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: 90 Degree PCB Magazine Unloader Power Supply: AC110V/220V,50/60Hz
Air Pressure: 4-6 Bar PCB Size: 50*50~530*460mm
Pitch Selection: 10-40mm Conveyor Speed: 0.5-20M/min Or Customized
Transport Belt: Black Transporting Belt Warranty: 1 Year
High Light:

40mm Pitch PCB Magazine Unloader

,

90 Degree PCB Magazine Unloader

,

3 Magazines SMT Unloader

SMT Production 90 Degree PCB Magazine Unloader LED Button Control MD Report



Application

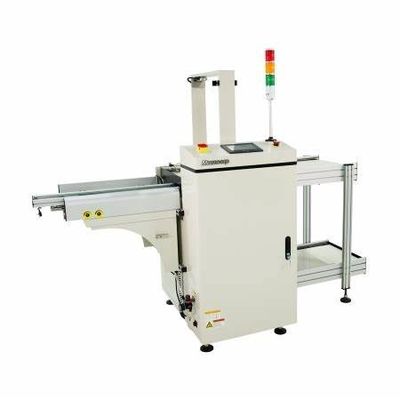

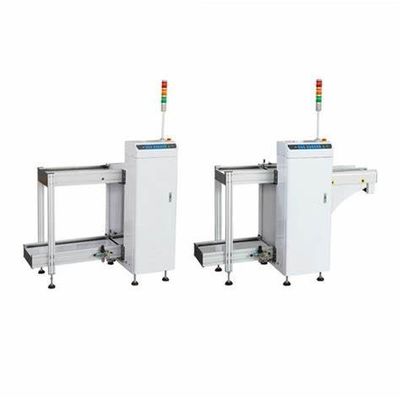

This unit is 90 degree PCB magazine unloader for SMT production line, used for automatic collecting PCBs in 90 degree right angle direction to save the length of the SMT line, the machine has a specially designed pusher which can push the PCBs from the transporting rail into the magazine racks.



Features



1, 90 degree right angle PCB unloading, save SMT production length.

2, Using multiple magazines, which wont impact the production throughout capacity.

3, LED button control mode with 3 lolor light display.

4, Smooth and parallel width adjustment with hand crank.

5, 3 magazines capacity: Top 1+ Down 2.

6, Top and bottom pneumatic clamps to secure magazine rack.

7, No PCB breakage guaranty during loading &unloading.

8, SMEMA compatible.



Specification



Product name 90 degree PCB Magazine unloader
Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 1 pc
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model HS-CU250 HS-CU330 HS-CU390 HS-CU460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine dimension 1100*1200*1200mm 1310*1360*1200mm 1430*1480*1200mm 1430*1620*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 200kg 260kg 300kg





About Us:



Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.




HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.



40mm Pitch 90 Degree PCB Magazine Unloader 20M/Min SMT 0







Contact Details
Shenzhen Hansome Technology Co., Ltd.

Contact Person: Mr. Rudi Jin

Tel: 86-755-23209382

Fax: 86-755-23209382

Send your inquiry directly to us (0 / 3000)
