40mm Pitch PLC Control PCB Magazine Unloader 4-6bar

40mm Pitch PLC Control PCB Magazine Unloader 4-6bar

  • 40mm Pitch PLC Control PCB Magazine Unloader 4-6bar
40mm Pitch PLC Control PCB Magazine Unloader 4-6bar
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-CU390
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: 90 Degree PCB Magazine Unloader Power Supply: AC110V/220V,50/60Hz
Air Pressure: 4-6bar PCB Size: 50*50~530*460mm
Pitch Selection: 10-40mm Conveyor Speed: 0.5-20M/min Or Customized
Transport Belt: Black Transporting Belt Warranty: 1 Year
High Light:

PLC Control PCB Magazine Unloader


40mm Pitch PCB Magazine Unloader


6bar PCB Unloading Machine

SMT Production 90 Degree PCB Magazine Unloader LED Button Control MD Report






1, 90 degree right angle PCB unloading, save SMT production length.

2, Using multiple magazines, which wont impact the production throughout capacity.

3, LED button control mode with 3 lolor light display.

4, Thickness 1.3mm, diameter 3mm edge flat ESD belt

5, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.

6, PLC control.

7, Smooth and parallel width adjustment with hand crank.

8, 3 magazines capacity: Top 1+ Down 2.

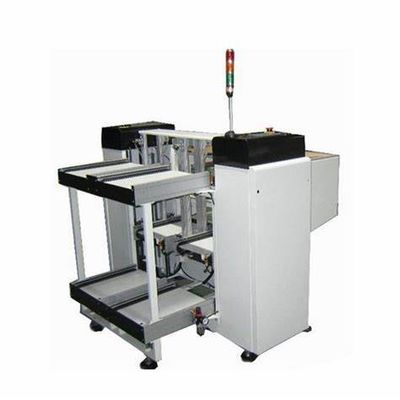

Product name 90 degree PCB Magazine unloader
Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 1 pc
Conveyor speed 0.5-20M/min or customized
Signal SMEMA


Model HS-CU250 HS-CU330 HS-CU390 HS-CU460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine dimension 1100*1200*1200mm 1310*1360*1200mm 1430*1480*1200mm 1430*1620*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 200kg 260kg 30





This unit is 90 degree PCB magazine unloader for SMT production line, used for automatic collecting PCBs in 90 degree right angle direction to save the length of the SMT line, the machine has a specially designed pusher which can push the PCBs from the transporting rail into the magazine racks.


About Us:


Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.


HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
