| Product Name: | 90degree L Type PCB Unloader | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |
High-Speed Intelligent SMT Production Line Automatic 90 Degree L Type PCB Unloader Machine
Technical Details
| Function | This unit is used for loading the PCBs,and transporting the PCB on the SMT production line |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Specification
| Model | HS-LD330 |
| Efficient PCB length | 50*50~455*330mm |
| Machine Size(L*W*H) | 900*1223*1450mm |
| Magazine size | 460*400*563mm |
| Weight | 220kg |
Features
1. Module design.
2. Stability enhanced by robust design.
3. Economic design arm test.
4. Smooth and parallel width adjustment.
5. Three magazine racks application.
6. Top and bottom pneumatic clamps to secure magazine rack.
7. No PCB breakage guaranty during loading &unloading.
8. SMEMA compatible.

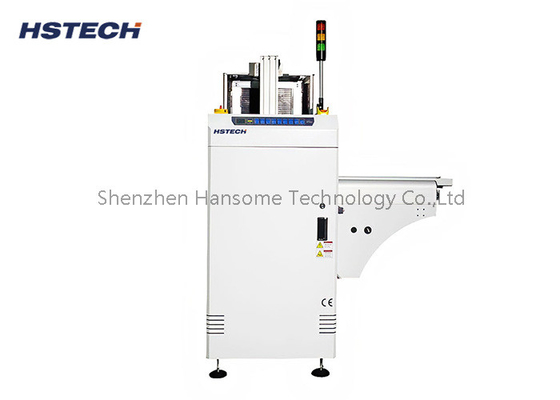

Machine drawing
Application
This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.
