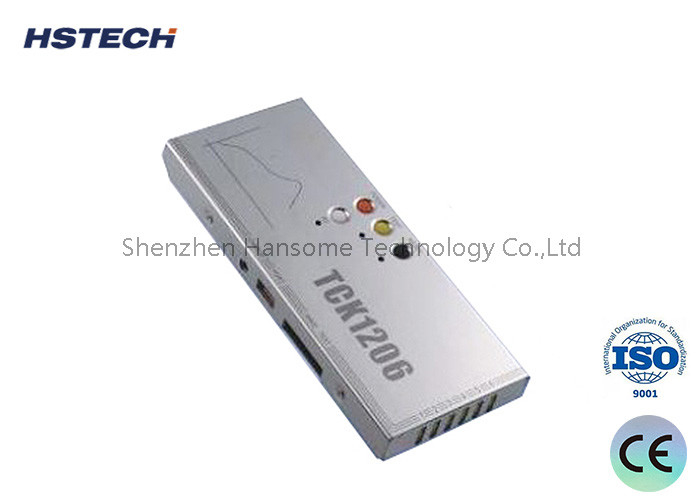

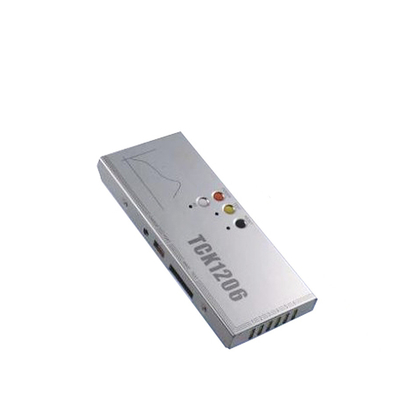

Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler

Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler
Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler

Large Image :  Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: TCK Series Thermal Profiler Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Signal: SMEMA Application: Electronic Assembly
Color: Silver Control System: PLC
OEM/ODM: Available Type: Automatic



Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler​



Standard Composition

1. Thermal profiler 2. Insulation box

3. Temperature test line 4. Data download line

5. Charger 6. Hi-temp adhesive tape

7. Software CD 8. “+” screwdriver 9. Tweezers

10. Insulated gloves 11. Solder wire

12. Scissors 13. Instrument box

14. User Manual 15. Acceptance Certificate

16. RF Transceiver (Choose Composition)

17. Wave Test System (Choose Composition)

Main Technical Specifications

1,Thermocouple: K-type thermocouple

2,Sampling interval:0.05sec---600sec Set with software

3,Record data:80000 point/channel, Can record 20 sets profile

4,Resolution: 0.1℃

5,Temperature measuring range: 0—1000℃

6,Temperature measuring accuracy: ±1.0℃

7,Total power: ≤120mW

8,Operating voltage:3.6VDC, rechargeable battery

9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm

10, Insulation box:245(L)×100(W)×30(H)mm

10,Start Mode : Manual, specified time or specified temperature

11,Record mode: Monitor/Record

12,Connection mode:USB/RF

13,Software version:Profilermanager 2.0


Product Library Manager


Machine Library Manager

Solder Library Manager

Solder Library Manager

Recipe Library Manager

Recipe Library Manager


Data analysis

PWI

Peak Temp,Times of overtop the Temp

Times of between Temp(Reflow)

Slope of between Temp(Reflow)

Slope of between Times(Wave)

About Packaging

Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler 5

Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler 6

Manual Specified Time Or Specified Temperature Start ModeTCK Series Thermal Profiler 7
