Detailed Product Description
Product Name: TCK Series Thermal Profiler Warranty: 1 Year
Control: Touch Screen PLC: MITSUBISHI
Relay Brand: Schneider Optoelectronic Switch: OMRON
Material: Aluminum Alloy Condition: New
Signal: SMEMA Application: Electronic Assembly
Color: Silver Control System: PLC
OEM/ODM: Available Type: Automatic

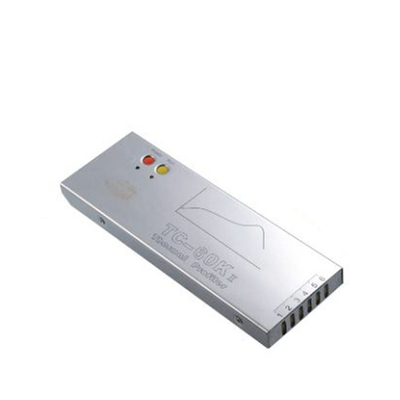

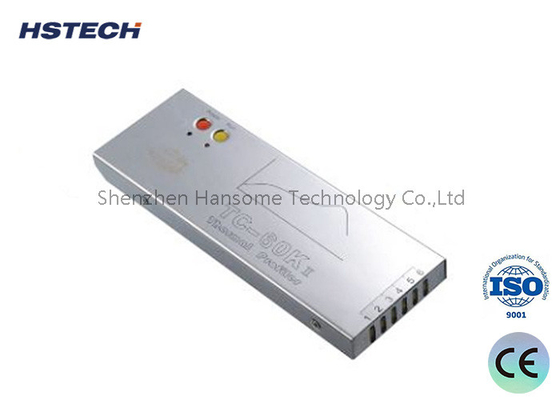

Manual, Specified Time Or Specified Temperature Start Mode TC Series Thermal Profiler



Standard Composition

1. Thermal profiler 2. Insulation box

3. Temperature test line 4. Data download line

5. Charger 6. Hi-temp adhesive tape

7. Software CD 8. “+” screwdriver 9. Tweezers

10. Insulated gloves 11.Solder wire

12. Scissors 13. Instrument box

14. User Manual 15. Acceptance Certificate

Main Technical Specifications:

1,Thermocouple: K-type thermocouple

2,Sampling interval:0.05sec---600sec Set with software

3,Record data:120000 point/channel, Can record 256 sets profile

4,Resolution: 0.1℃

5,Temperature measuring range: 0—600℃ OR 0—1200℃

6,Temperature measuring accuracy: ±1.0℃

7,Total power: ≤100mW

8,Operating voltage:3.6VDC, rechargeable battery

9,Dimensions: 208(L)×75(W)×15(H)mm 208(L)×75(W)×19(H)mm

10,Insulation box:252(L)×88(W)×30(H)mm

11,Start Mode : Manual, specified time or specified temperature

12,Record mode: Monitor/Record

13,Connection mode:RS232/USB

14,Software version: e-DataPro 2.2


Software main screen


Product information setup


Solder information setup


Machine parameter setup


Data analysis:

PWI

Peak Temp,Times of overtop the Temp

Times of between Temp(Reflow)

Slope of between Temp(Reflow)

Slope of between Times(Wave)

Horizontal line and Vertical line setting
