| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-UD330 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | PCB Unloader | Other Name: | SMT Line Unloader |
|---|---|---|---|
| PCB Size: | 50*50~450*330mm | PCB Unloading Time: | Approx 6 Seconds |
| Magazine Change Over Time: | Approx 30 Seconds | Power Supply: | AC220V, 50/60Hz |
| PCB Thickness: | Min 4mm | Communication: | SMEMA |

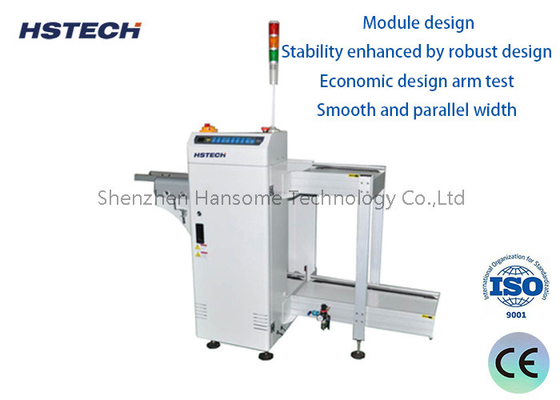

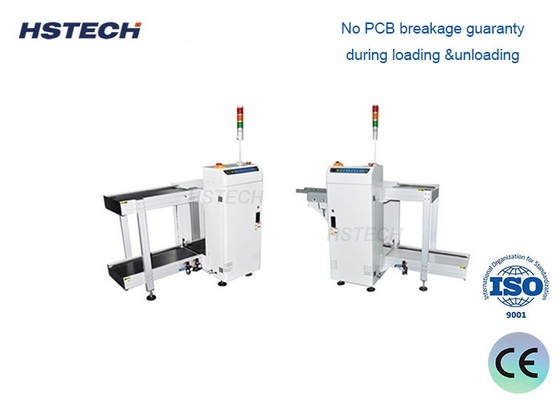

330mm Width LED Button/Touch Screen Control PCB Unloader with 3 Magazines, Mitsubishi PLC, ZD Motor Driven
Application
This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.
Features
1. Mitsubishi PLC
2. ZD motor drive.
3. Thickener conveyor belt.
4. 3 tool changing magazines, 1 magazine on the top side, and 2 magazines on the button side.
5. LED button control mode with 3 lor light displays.
6. The machine structure of stainless steel and aluminum profiles is stable and easy to maintain.
7. Adjust the width smoothly and parallel with a manual crank.
8. The precision thruster pushes the printed circuit board onto the magazine
9. The top and bottom pneumatic fixtures fix the magazine holder.
10. SMEMA compatibility.
Specification
| Function | This unit is used for unloading the PCBs. |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine change over time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Pitch selection | 1-4(10mm pitch) |
| Signal | SMEMA |
| Model | HS-UD250 | HS-UD330 | HS-UD390 | HS-UD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1900*800*1200mm | 2320*880*1200mm | 2620*940*1200mm | 2620*1080*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 220kg | 280kg | 320kg |
