Professional Dual Rail Design PCB Unloader with Tower Light Display and Panasonic PLC for SMT Production

Professional Dual Rail Design PCB Unloader with Tower Light Display and Panasonic PLC for SMT Production

Brand Name:	HSTECH
Model Number:	HS-250DULD
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Dual Rail PCB Unloader

PLC:

MITSUBISHI

Relay:

Schneider

Optoelectric Switch:

Omron

Driver Brand:

Meanwell

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

500 pcs per month

Highlight:

Dual Rail Design PCB Unloader

Tower Light Display SMT Magazine UnLoader

Panasonic PLC PCB Handling Equipment

Product Description

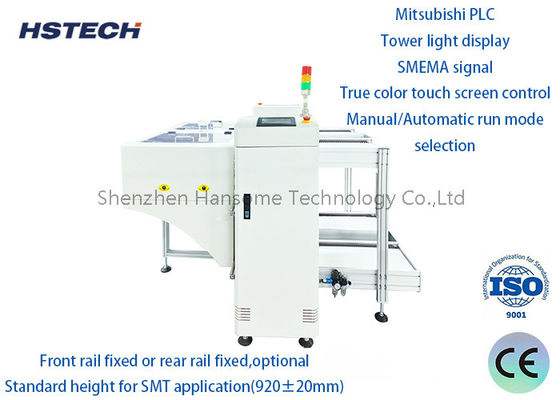

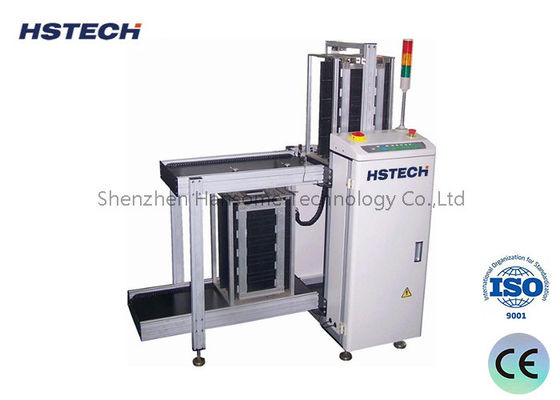

Professional Automatic SMT Magazine UnLoader PCB Handling Equipment

The Dual Rail PCB Unloader is an automated equipment designed for the electronics manufacturing industry, specifically engineered to unload mounted printed circuit boards (PCB) from production lines with precision and efficiency.

Equipment Overview

This advanced PCB handling system features dual independent transmission channels that operate in parallel, significantly enhancing unloading speed while maintaining precise positioning through sophisticated sensor and servo control systems.

Key Features

True color touch screen control interface
Panasonic PLC for reliable operation
Magazine capacity: top 1, bottom 1, or customized configurations
Selective pitch options: 10mm, 20mm, 30mm, 40mm
PCB transport direction: Left to Right or Right to Left (optional)
Manual/Automatic run mode selection
Front rail fixed or rear rail fixed configuration
Standard SMT application height (920±20mm)
Tower light display for operational status
SMEMA signal compatibility

Technical Specifications

Model	HS-250DULD
PCB Dimension	(50×50)~(350×250)mm
Magazine Size	355×320×565mm
PCB Loading Time	Approximately 6 seconds
Magazine Replace Time	30 seconds
Power Supply	AC100-230V, Single Phase, max 300A
Air Supply	4-6 bar, Max 10L/min
Transport Height	900±20mm
Transport Direction	L to R, or R to L (optional)
PCB Thickness	Minimum 0.4mm
Magazine Quantity	Top 1pc, down 1 pc, or customized
Step Pitch Options	1-4 (10mm pitch)
Machine Dimension	1460×1500×1200mm
Weight	Approximately 210kg

Product Images

Quality Assurance

We specialize in providing exceptional SMT equipment that undergoes rigorous standard checks to ensure 100% functionality. Our PCB Magazine Loaders are manufactured and resold with a commitment to quality, safety, and performance. These reliable systems are designed to enhance your production efficiency and contribute to your company's growth through increased productivity and profitability.
