Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader

Name

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader

Brand Name:	HSTECH
Model Number:	HS-ST400
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

PCB Stacker

Other Name:

Bare Board Unloader

Power Supply:

AC110V/220V,single Phase

Program:

PLC

PLC Brand:

Panasonic

Air Pressure:

0.6Mpa

PCB Thickness:

0.6~4.0mm

Warranty:

1 Year

Packaging Details:

Wooden package,with foam

Supply Ability:

100 sets per month

Product Description

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader

Application

This machine used for unloading/collection bare PCBs from SMT production line after laser marking.

Specification

Function	Used for collecting bare PCB to smt line from upstream machine
Transport height	910±30mm
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side
PCB thickness	0.6~4.0mm
PCB components height	±35mm
PCB feeding time	Approx. 10 seconds or Specify
Board weight	≤3KG
Power supply	220V,50/60Hz,±10%
Power	0.05kW
Air pressure	0.6Mpa
Air consumption	<20L/min
Signal	SMEMA

Model	HS-ST400	HS-ST530
Efficient PCB length	50~400mm	50~530mm
Transport PCB width	50~400mm	50~500mm
PCB thickness	Min 0.6mm	Min 1.0mm
Machine dimension	6506701200mm	8008801200mm
Weight	170kg	190kg

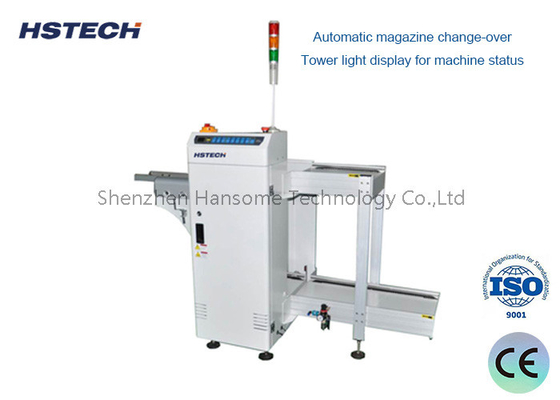

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader 0

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader 1
