SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

90 Degree Right Angle PCB Unloader

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Size:

50*50~530*460mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Transport Belt:

Flat Belt

Magazine Qty:

2 Magazines

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment

Application

This unit is compact PCB unloader machine, used for collect PCBs at the end of SMT production line.

Model	HS-CU250	HS-CU330	HS-CU390	HS-CU460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine dimension	110012001200mm	131013601200mm	143014801200mm	143016201200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	200kg	260kg	300kg

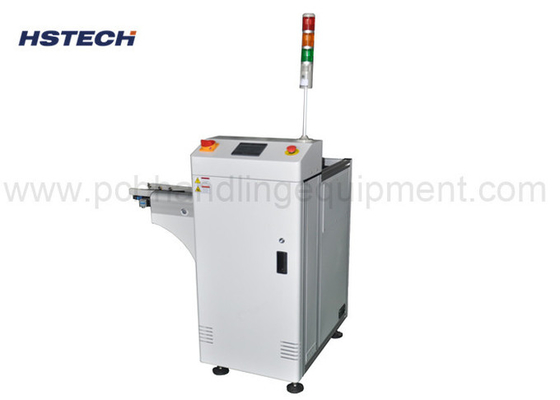

SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment 0

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
