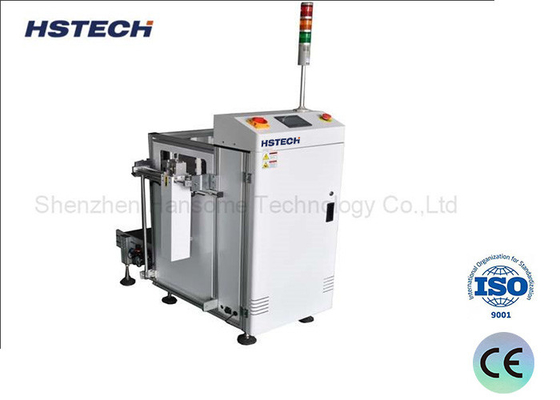

PLC Controlled 90 Degree PCB Unloading Equipment with 530*460mm Max Size

PLC Controlled 90 Degree PCB Unloading Equipment with 530*460mm Max Size

PLC Controlled 90 Degree PCB Unloading Equipment with 530*460mm Max Size

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

90 Degree Right Angle PCB Unloader

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Size:

50*50~530*460mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Transport Belt:

Flat Belt

Magazine Qty:

2 Magazines

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Features

1, 90 degree right angle PCB unloading, save the factory room.

2, Stability enhanced by robust design.

3, PLC control, touch screen control panel.

4, Flat transport belt.

5, Economic design arm test, enclosed design ensure the safety operation.

Specification

Product name	right angle PCB unloader
Transport height	910±30mm
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 1 pc
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Model	HS-CU250	HS-CU330	HS-CU390	HS-CU460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine dimension	110012001200mm	131013601200mm	143014801200mm	143016201200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	200kg	260kg	300kg

PLC Controlled 90 Degree PCB Unloading Equipment with 530*460mm Max Size 0
