Economical Double Magazine PCB Unloader for 530*460mm Boards and SMEMA Signal

Brand Name:	HSTECH
Model Number:	HS-LD330
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

90 Degree Right Angle PCB Unloader

Power Supply:

AC110V/220V,50/60Hz

Air Pressure:

4-6 Bar

PCB Size:

50*50~530*460mm

Pitch Selection:

10-40mm

Conveyor Speed:

0.5-20M/min Or Customized

Transport Belt:

Flat Belt

Magazine Qty:

2 Magazines

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment

Application

This unit is compact PCB unloader machine, used for collect PCBs at the end of SMT production line.

Features

1, 90 degree right angle PCB unloading, save the factory room.

2, Stability enhanced by robust design.

3, PLC control, touch screen control panel.

4, Flat transport belt.

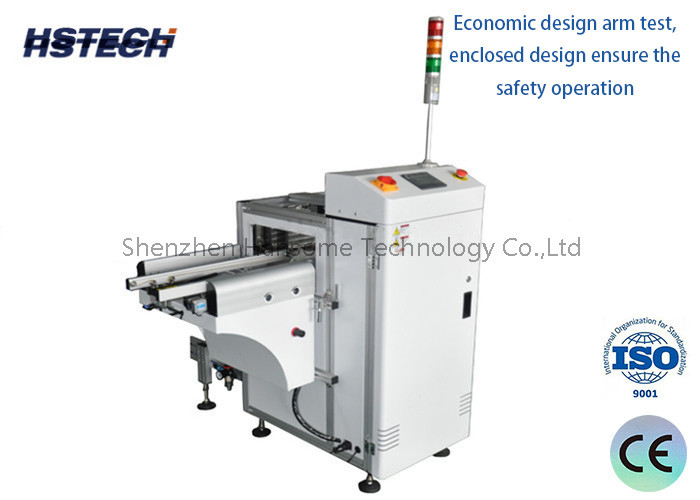

5, Economic design arm test, enclosed design ensure the safety operation.

6, Smooth and parallel width adjustment.

7, Double magazine application.

8, Top and bottom pneumatic clamps to secure magazine rack.

9, No PCB breakage guaranty during loading &unloading.

10, SMEMA compatible.

Specification

Product name	right angle PCB unloader
Transport height	910±30mm
Transportation direction	L~R, or R~L
Operation	Front operation
Track fixed side	Front side
Power supply	220V,50/60Hz,±10%
Air pressure	4-6bar
PCB thickness	Min 0.4mm
Magazine qty	Upper side:1 pc,bottom side: 1 pc
Conveyor speed	0.5-20M/min or customized
Signal	SMEMA

Model	HS-CU250	HS-CU330	HS-CU390	HS-CU460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine dimension	110012001200mm	131013601200mm	143014801200mm	143016201200mm
Magazine size	355320563mm	460400563mm	535460570mm	535530570mm
Weight	140kg	200kg	260kg	300kg

Economical Double Magazine PCB Unloader for 530*460mm Boards and SMEMA Signal 0

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
