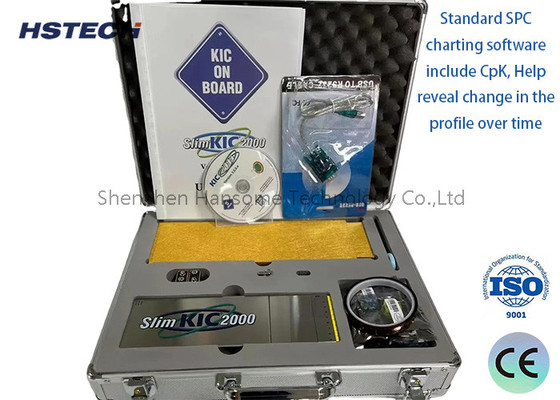

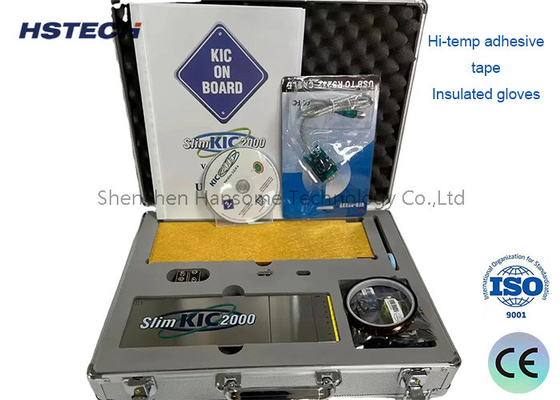

Wave Test Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape

Brand Name:	HSTECH
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

TCK Series Thermal Profiler

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Type:

Automatic

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

TCK Series Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape

Main Technical Specifications

1,Thermocouple: K-type thermocouple

2,Sampling interval:0.05sec---600sec Set with software

3,Record data:80000 point/channel, Can record 20 sets profile

4,Resolution: 0.1℃

5,Temperature measuring range: 0—1000℃

6,Temperature measuring accuracy: ±1.0℃

7,Total power: ≤120mW

8,Operating voltage:3.6VDC, rechargeable battery

9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm

10, Insulation box:245(L)×100(W)×30(H)mm

10,Start Mode : Manual, specified time or specified temperature

11,Record mode: Monitor/Record

12,Connection mode:USB/RF

13,Software version:Profilermanager 2.0

Wave Test Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape 0

Product Library Manager

Machine Library Manager

Solder Library Manager

Wave Test Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape 3

Recipe Library Manager

Wave Test Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape 4

Data analysis

PWI

Peak Temp,Times of overtop the Temp

Times of between Temp(Reflow)

Slope of between Temp(Reflow)

Slope of between Times(Wave)

About Packaging
