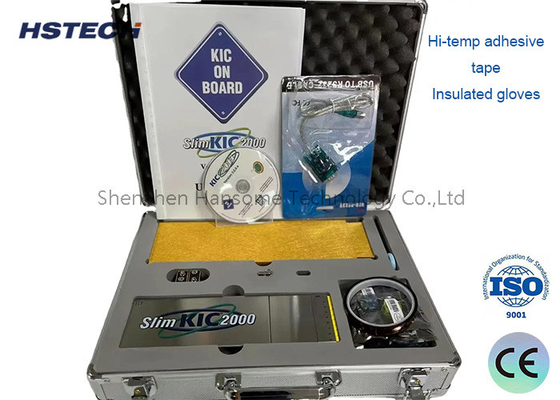

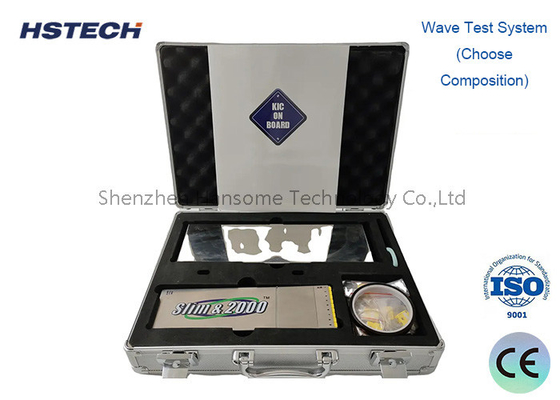

High-Accuracy Thermal Profiler 80000 Data Point/Channel RF Transceiver Hi-Temp Adhesive Tape

Brand Name:	HSTECH
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

TCK Series Thermal Profiler

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Type:

Automatic

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

High-Accuracy Thermal Profiler 80000 Data Point/Channel RF Transceiver Hi-Temp Adhesive Tape

Main Technical Specifications

1,Thermocouple: K-type thermocouple

2,Sampling interval:0.05sec---600sec Set with software

3,Record data:80000 point/channel, Can record 20 sets profile

4,Resolution: 0.1℃

5,Temperature measuring range: 0—1000℃

6,Temperature measuring accuracy: ±1.0℃

7,Total power: ≤120mW

8,Operating voltage:3.6VDC, rechargeable battery

9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm

10, Insulation box:245(L)×100(W)×30(H)mm

11,Start Mode : Manual, specified time or specified temperature

12,Record mode: Monitor/Record

13,Connection mode:USB/RF

12,Software version:Profilermanager 2.0

Product Library Manager

Machine Library Manager

Solder Library Manager

Recipe Library Manager

Recipe Library Manager

Data analysis

PWI

Peak Temp,Times of overtop the Temp

Times of between Temp(Reflow)

Slope of between Temp(Reflow)

Slope of between Times(Wave)
